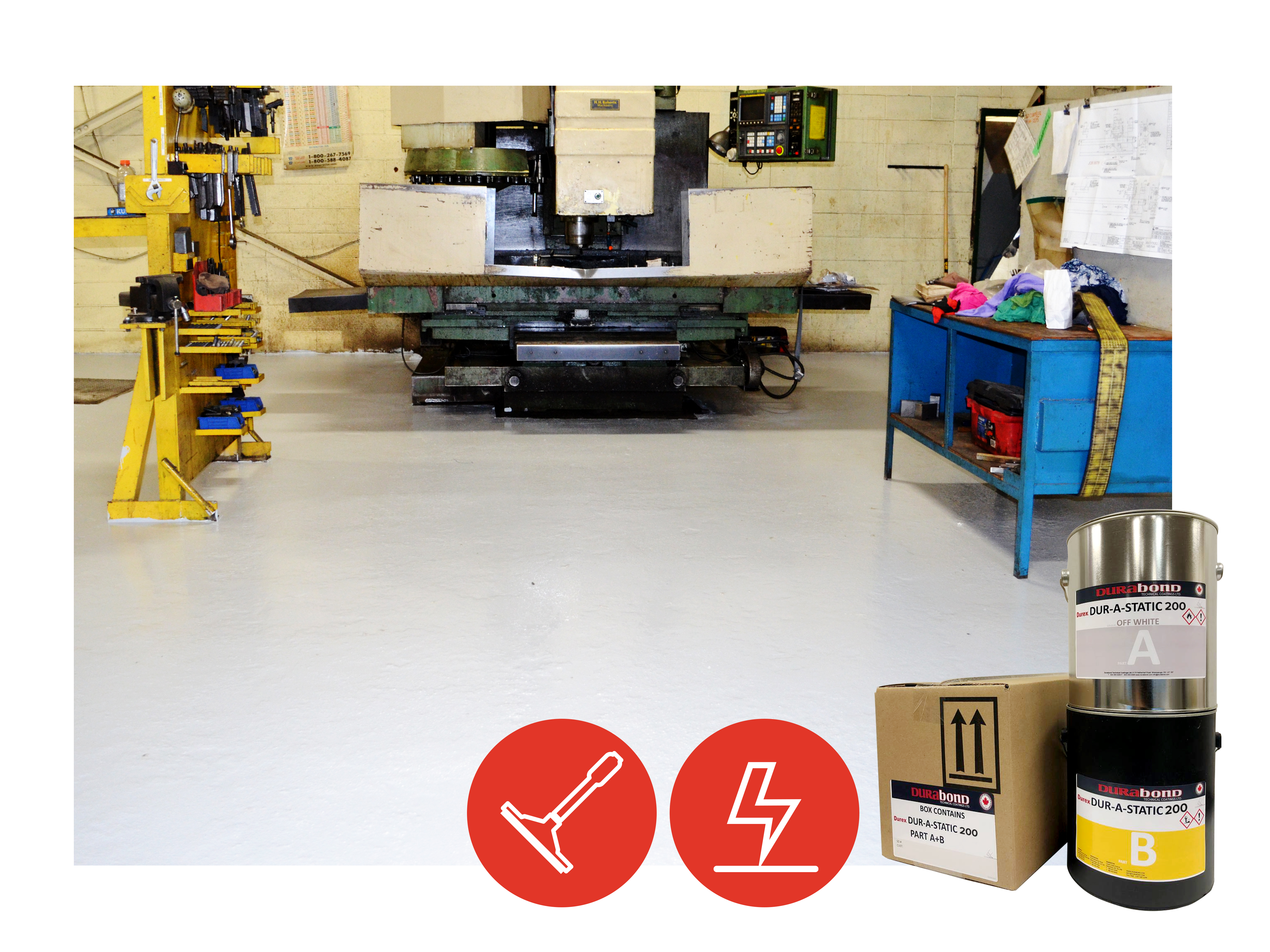

Dur-A-Static ESD 200
High-Performance Epoxy-Based Body (Top) Coat for Dur-A-Static ESD System
Coverage

88/ft² (8.18/m²) per Gallon @ 12.00 mils (0.3048 mm)

NMS
09 67 13
Description

Dur-A-Static ESD 200 is a high-performance, durable epoxy-based coating designed as the top coat for Dur-A-Static electrostatic discharge (ESD) flooring system. Dur-A-Static ESD 200 is designed for use as a durable, wear-resistant top coat in a static dissipative system that provides electric conductive resistance to protect sensitive electronic equipment and machinery. The system performs to a range of 2.5 x 104 to 1.0 x 106 ohms. The system consists of a priming/leveling layer which is then combined with conductive grounded copper wire, Dur-A-Static ESD 100 intermediate conductive coat and Dur-A-Static 200 Top Coat. Dur-A-Static ESD 200 is ideal for data processing centres, computer and IT-related rooms and processing facilities, dry powder filling and handling facilities, solvent handling facilities, flammable gas handling locations, aircraft and aerospace facilities and hangars. It is also used for pharmaceutical plants, hospitals and health care facilities / laboratories, electronic-based manufacturing facilities and production areas with electrically sensitive equipment, computer, conductor and circuit board production areas and explosion hazard facilities.

Advantages
  • Protects sensitive electronic parts from the effects of static charges by dissipating them away
  • Prevents explosions due to sparks of accumulated static charges by effectively conducting it away
  • Avoid errors in readings recorded by sensitive electronic instruments monitoring vital parameters
  • Enables easy maintenance of clean room environment through its seamless, pore-free smooth surface
  • Improves the working environment by its pleasant aesthetics
  • Conforms to ANSI S20.20, < 3.5 x 107 ohms when tested in accordance with ANSI STM 97.1
  • Available in conductive range (2.5 X 104 to 1.0 X 106) ohms per ANSI/ESD S7.1/ASTM F-150
  • Low BVG, Body Voltage Generation
  • Maintain electrical resistance throughout coating thickness



Uses

Dur-A-Static ESD 200 is the wear-resistant top coat layer for Dur-A-Static ESD 200 Electrostatic Discharge (ESD) flooring system to provide electrostatic control properties to concrete and other construction substrates. The system is recommended for floors in environments where static electricity and stray currents produced by friction could pose risks of explosions or interference with the working of precision electronic instruments.

Physical Properties

Colour

Please see Durex® Colour Selection Guide for available colour options

Resin Type

Cyclo-aliphatic Epoxy

Mix Ratio
  • Part A (Resin): Part B (Hardener)
  • 2:1 by volume
Coverage

88-130 ft²/gal @ 12-18 mils DFT

Cure Time @ 23°C
  • To touch: 8-12 hours
  • Light traffic: 48 hours
  • Fully cured: 7 days
Pot Life @ 23°C

20 minutes

Recommended Film Thickness

12-18 mils DFT



Performance Properties
Method Results
Percent Solids

ASTM D7232

100%

V.O.C.

ASTM D3960

≤ 15 g/L

Specific Gravity (Mixed)

ASTM D333

1.25 ± 0.05 g/L

Viscosity (Brookfield, 23°C)

ASTM D2196

1000 cps

Abrasion Resistance

ASTM 5178-91 CS-17 wheel

75 mg loss, 1000 g load, 1000 cycles

Tensile Strength

ASTM D638

6,000 psi

Compressive Strength

ASTM C579

11,200 psi

Adhesion to Concrete

ASTM D4541

> 350 Psi Concrete fails

Shore D Hardness

ASTM D2240

80
