Uraflex Garbage Room Waterproofing System
Garbage Room
Uraflex Garbage Room Waterproofing System
Garbage Room Waterproofing Floor Coating System
View Project Gallery
System Description
Components
Technical Information
Documentation
Description

Uraflex Garbage Room Waterproofing System is a high iperformance waterproofing system designed for suspended slab garbage rooms in most commercial, residential and institutional complexes. The system consists of an elastomeric membrane base coat, Uraflex 360 Elastomeric Polyurethane Waterproofing Membrane, silica sand broadcasted to excess in Uraflex 100 and top coated with Uraflex 100, a durable, chemical resistant coating.

Advantages
  • Abrasion resistant and elastomeric
  • Waterproofing Membrane
  • Potential LEED Credits
  • Very low odour, minimal disturbance to tenants
  • Durable and long-lasting
  • Easy to clean
  • Protects from hairline cracks
Uses

Uraflex Garbage Room Waterproofing System is intended for use on suspended slab garbage rooms as a protective waterproofing system for medium to heavy use in commercial, institutional and high-rise residential garbage rooms.. It is ideal for garbage room areas, heavy duty service rooms and equipment rooms.

Physical Properties
Colours

Please see Durex® Colour Selection Guide for available colour options.
Coverage

Membrane (Uraflex 360)

Broadcast (x 2 coats) Epotel GSC or Epotel Novolac

Silica Sand #32 (broadcasted)

Topcoat Epotel GSC or Epotel Novolac

1.2 m2/L (50 ft2/gal) @ 32 mils

- 0.9 m2/L (36 ft2/gal) @ 35 mils DFT

- 5-10kg/m2 (1-2 lb/ft2)

4 m2/L (160 ft2/gal) @ 10 mils DFT
Service Temperature Range

Min. 0°C/Max. 50°C/Quick Term 95°C
Performance Properties
Compressive Strength @ 7 days

ASTM C579

9,000 psi
Tensile Strength

ASTM C307

2,100 psi
Flexural Strength

ASTM C580

850 psi
Bond Strength

ACI 503R

350 psi concrete fails
Thermal Coefficient of Expansion

ASTM D696

0.00635 mm/inch per 0°C (0.000025 in.)
Abrasion Resistance - CS-17 wheel, 1 kg. load, 1000 rev.

ASTM D4060

35-45 mg maximum weight loss
Thermal Shock Resistance

ASTM C884

Passes
Water Absorption

ASTM C413

0.1%
Flammability

ASTM D635

Self-extinguishing
Impact Resistance

MIL D-3134F

1.5 ft/lb
Indentation

MIL D-3134F

3.6%
Coefficient of Friction

ASTM D1894-61T

0.4
Uraflex Garbage Room Waterproofing System Data Sheet
Uraflex Garbage Room Waterproofing System Brochure
Durabond - Protective Coatings Colour Selection Guide

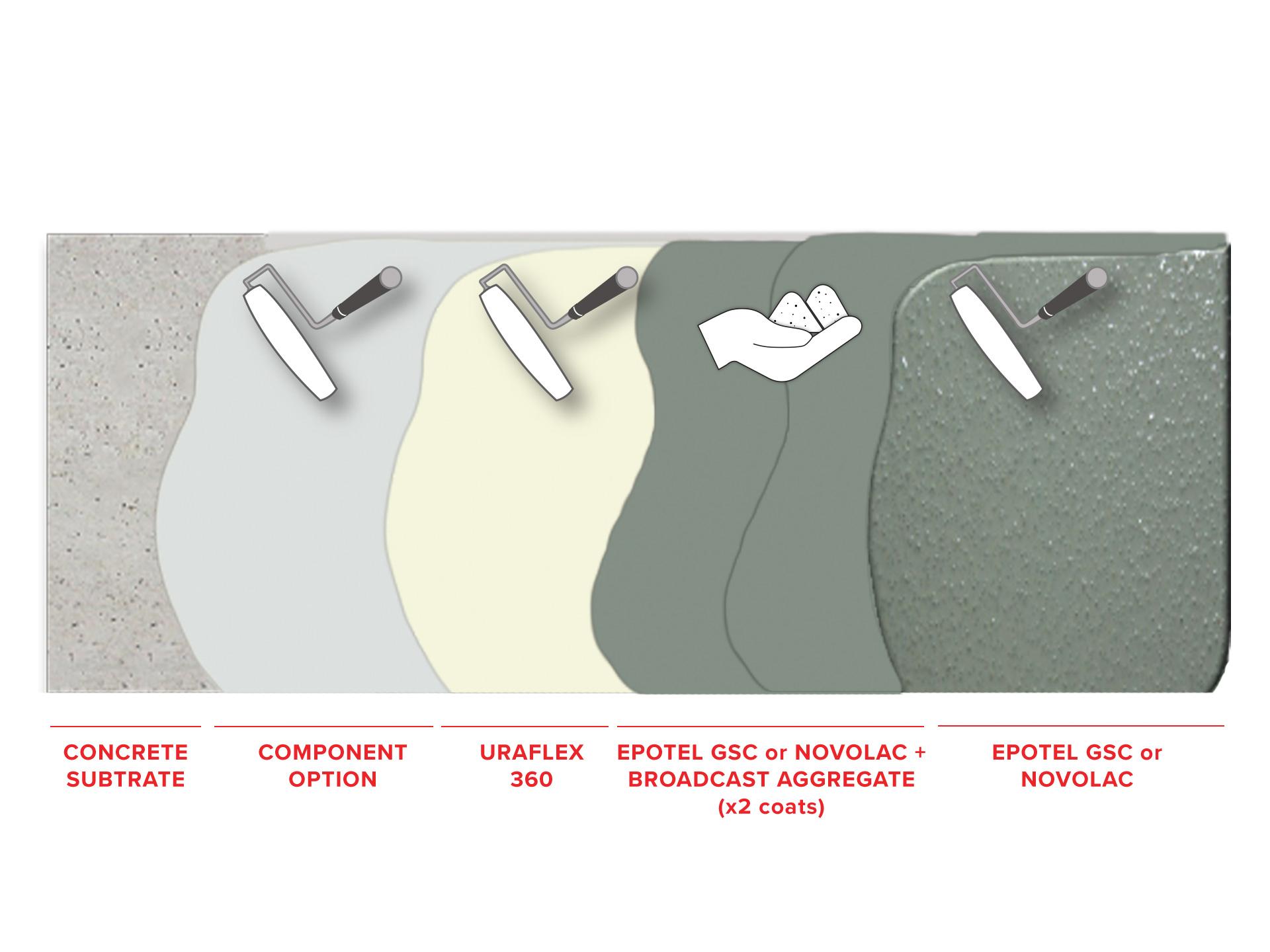

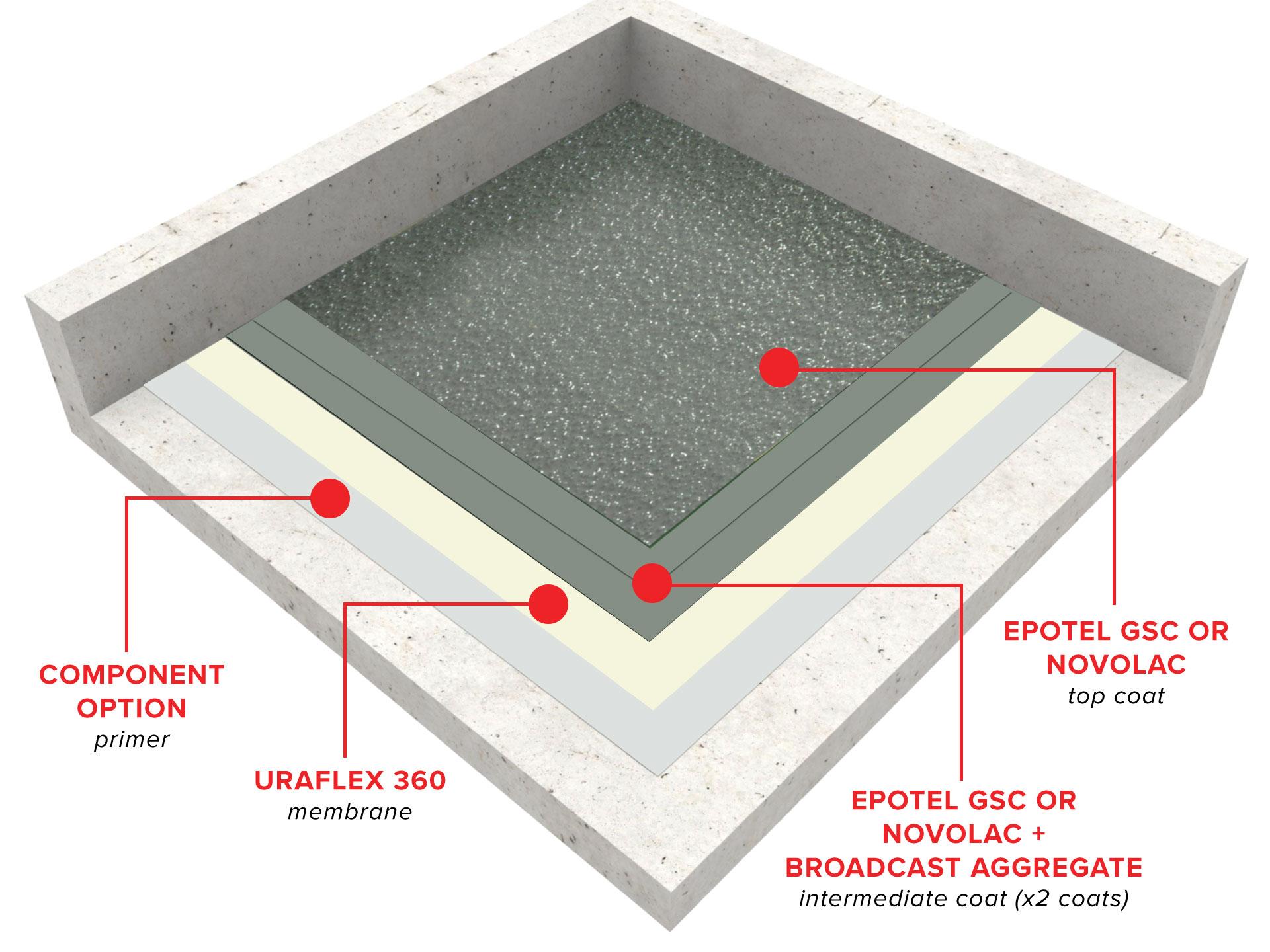

System Layer Optional Products Per Layer Notes
Primer
Optional
Membrane
Intermediate Coat
+ Broadcast Sand Aggregate (2 coats)
Top Coat
