Dur-A-Comfort ERGO SD
Seamless, Ergonomic Sound Absorbing Polyurethane System (6 mm)
Description

Durex® Dur-A-Comfort ERGO SD is a seamless, 6mm thick polyurethane-based ergonomic, sound-absorbing comfort floor system that features an absorbing 4mm shock-absorbing membrane for enhanced user comfort and excellent sound absorption. Durex® Dur-A-Comfort ERGO SD is engineered for use in dry areas where additional human comfort is required. Areas include children's centers and daycares, operation rooms, rooms where users are subject to lengthy periods on their feet, and in areas where additional sound dampening is needed. Easy to overcoat and repair.

Advantages
  • 4mm thick membrane for enhanced noise reduction & ergonomics
  • Available in a multitude of decorative finishes
  • High performance, aesthetically pleasing, durable finish
  • Easy and quick to install, recoat, and repair
  • Long-term service life
  • Lightweight seamless flooring system, easily upturned to create coving and containment areas
  • Will not support the growth of fungus or bacteria
  • Excellent abrasion and slip resistance
  • Easy to clean and maintain
Uses

Durex® Dur-A-Comfort ERGO SD System is used as a decorative and protective ergonomic flooring system for dry areas that will be exposed to higher traffic where enhanced sound absorption and additional comfort are desired. It is best used for institutional and healthcare flooring applications where a sound-absorbing, seamless, hygienic flooring system is required.

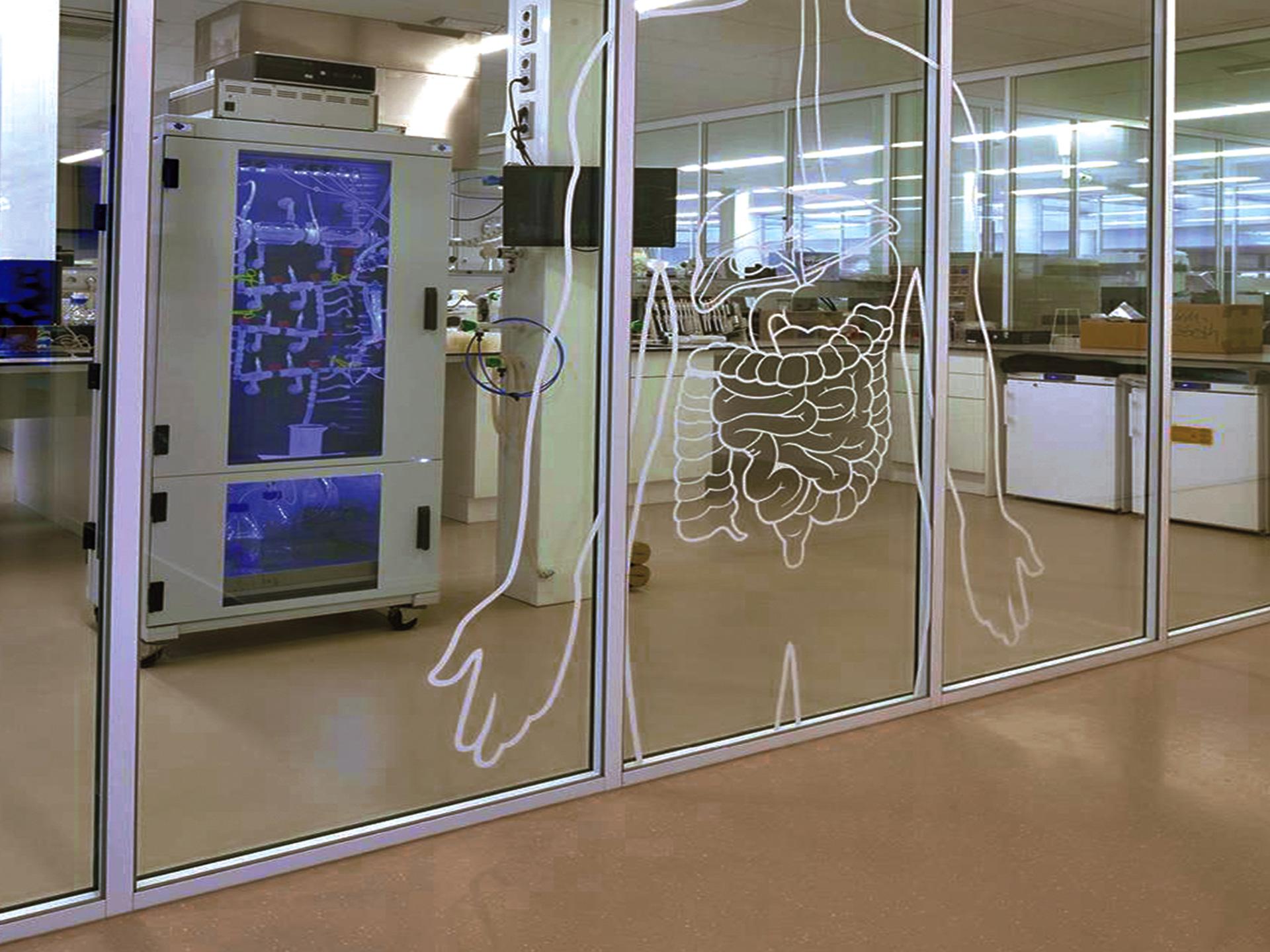

• Laboratories
• Hospital Main Corridors (dry areas) & Operation Rooms
• Long Term Care Facilities

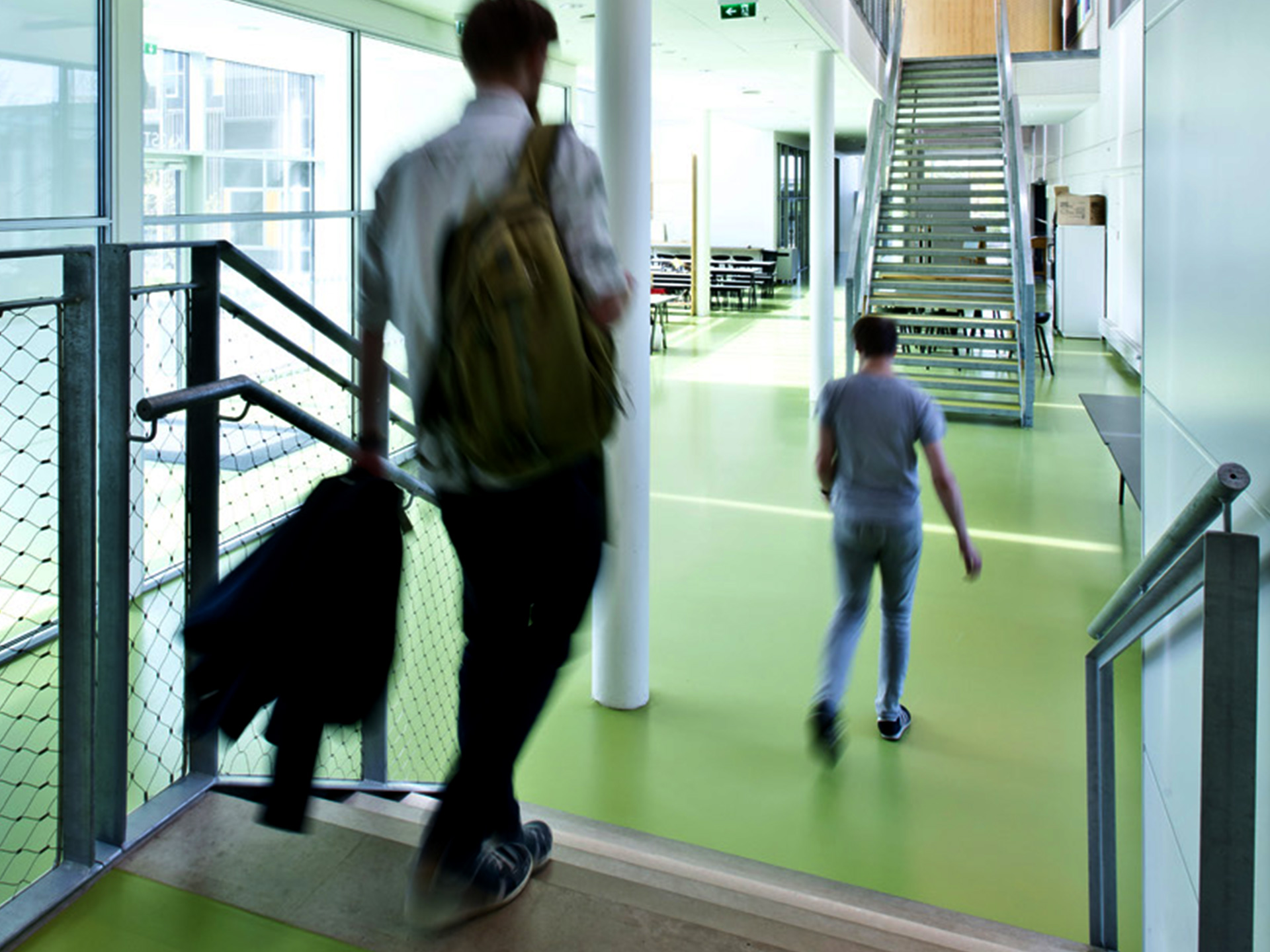

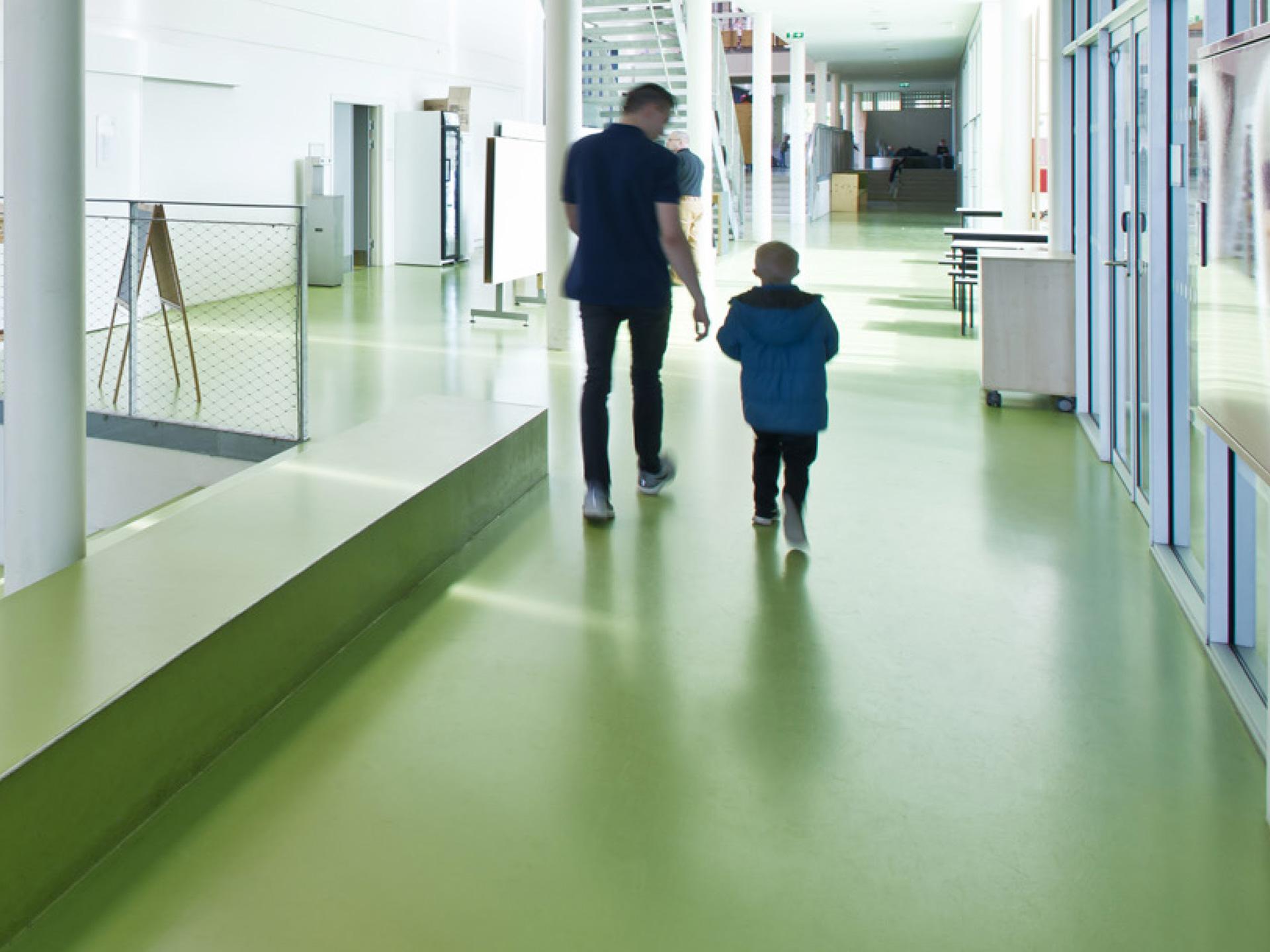

• Children Day Care Centres, Public institutions and buildings

Physical Properties
Colour

Standard Finish: Solid Colour.
DecoArt Finish: Variety of Designs & Colours

Mix Ratio

Refer to Product TDS Sheet

Pot Life

Refer to Product TDS Sheet

Chemical Resistance

Contact Durabond for specific information

Performance Properties
Percent Solids

ASTM D7232-06
?

100%

Shore Hardness A

ASTM D2240
?

83

Sound Dampening

<17 db

Suitable for Underfloor Hearting

Yes

Abrasion Resistance

ASTM D4060

(-0.04g) C5-17/1000 rotations/ 1000g

Impact Strength

ASTM D4226

167 in./ lbs.

Residual Impression

ASTM D4226

0.05mm (360kg load)

Tensile Strength

ASTM F970

1,454 psi. (~ 10.0 N/mm?)

Tensile Adhesion Strength

ASTM D4541

> 500 psi. (3.5 MPa) (concrete failure)

Tear Strength

ASTM D624

153.36 lbs./in. (~ 27 N/mm 14 days)

Elongation at Break

ASTM D412

195%

Crack Bridging Ability

ASTM C1305

Passed

External Fire Performance

ASTM E648

Class I

Gloss Level

ASTM D-523
?

10 (60 Degrees)

Coefficient of Friction

ANSI 326.3

0.6

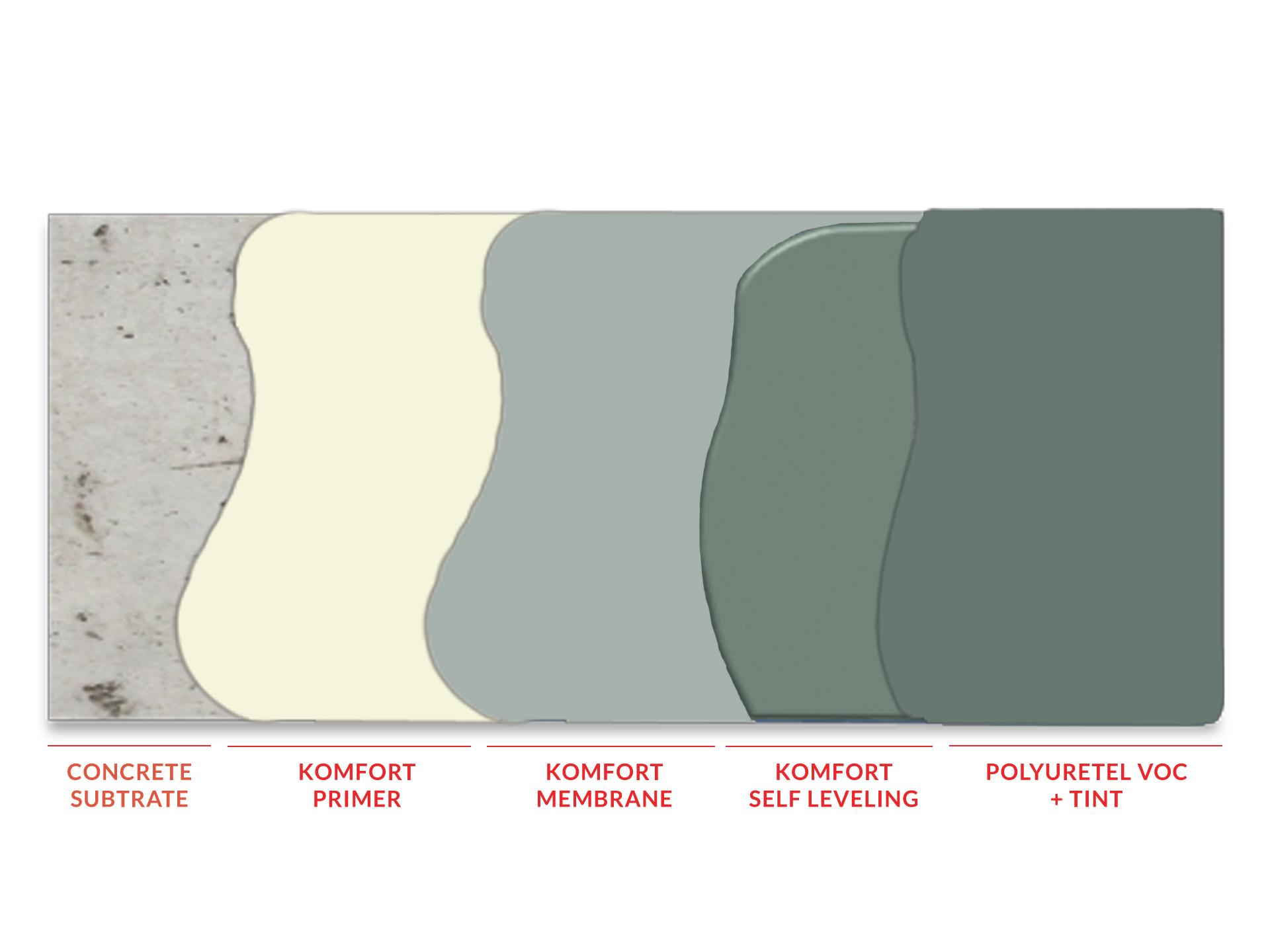

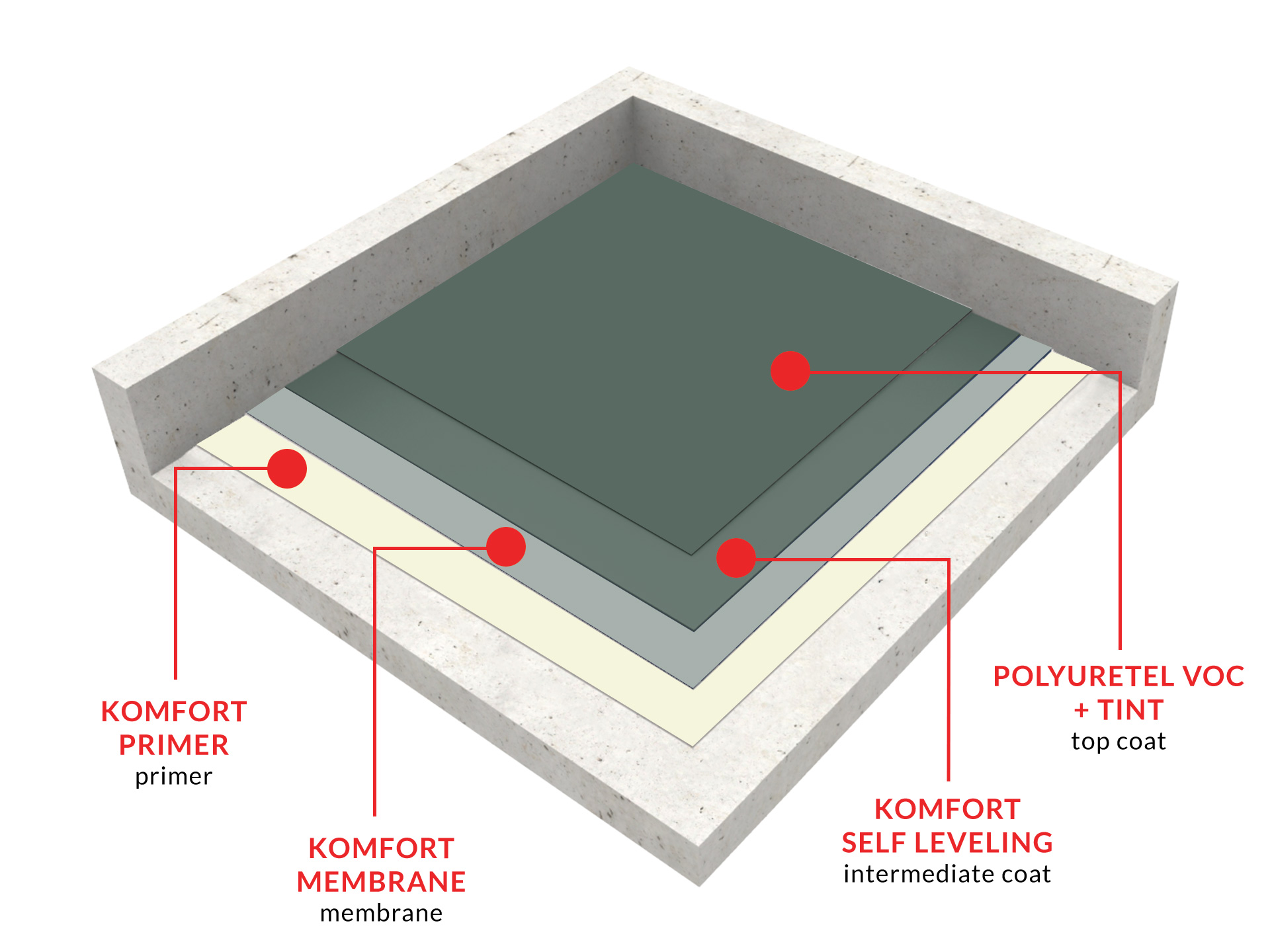

System Layer Optional Products Per Layer Notes
Primer
Membrane
Intermediate Coat
Top Coat
