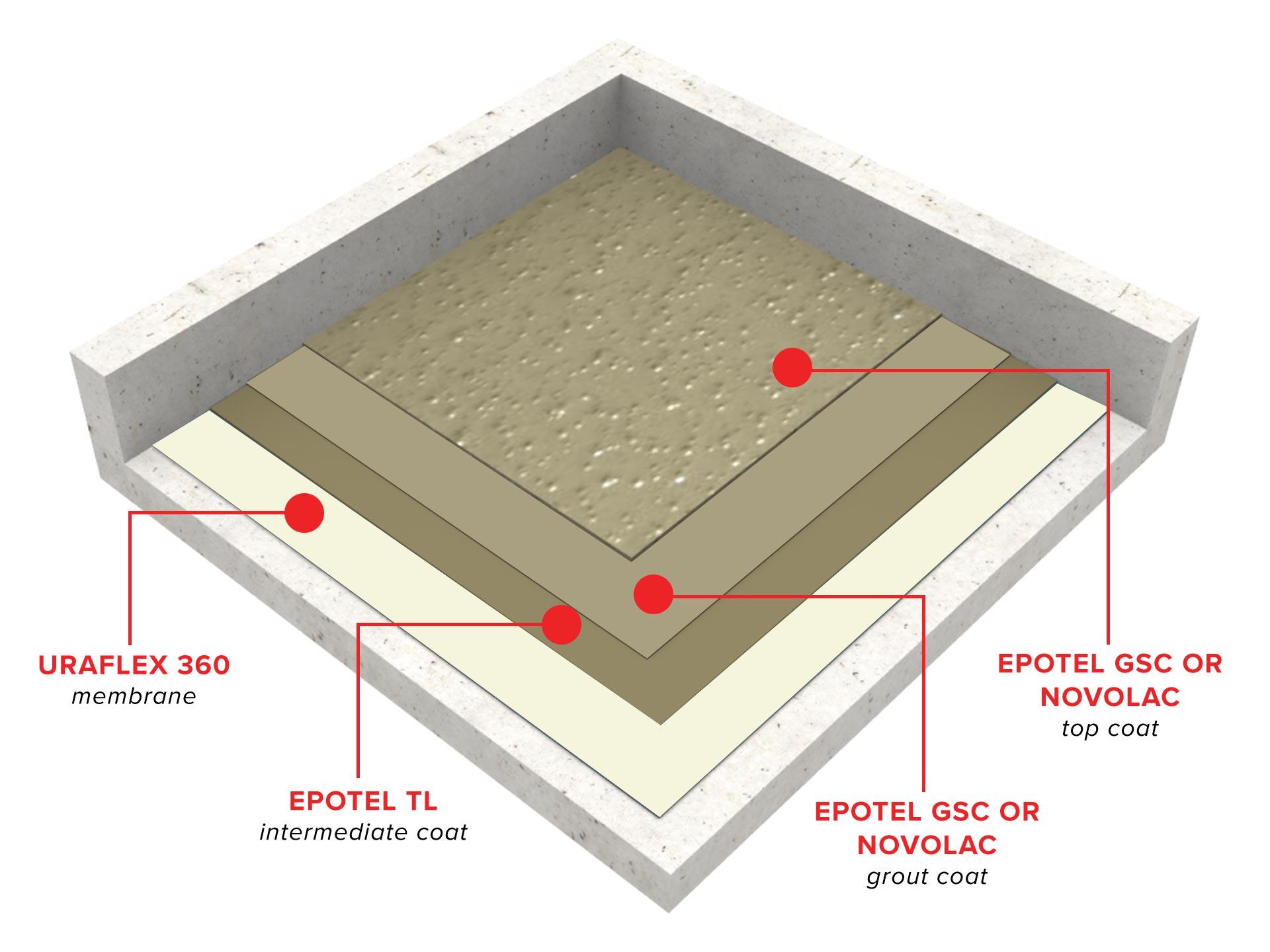

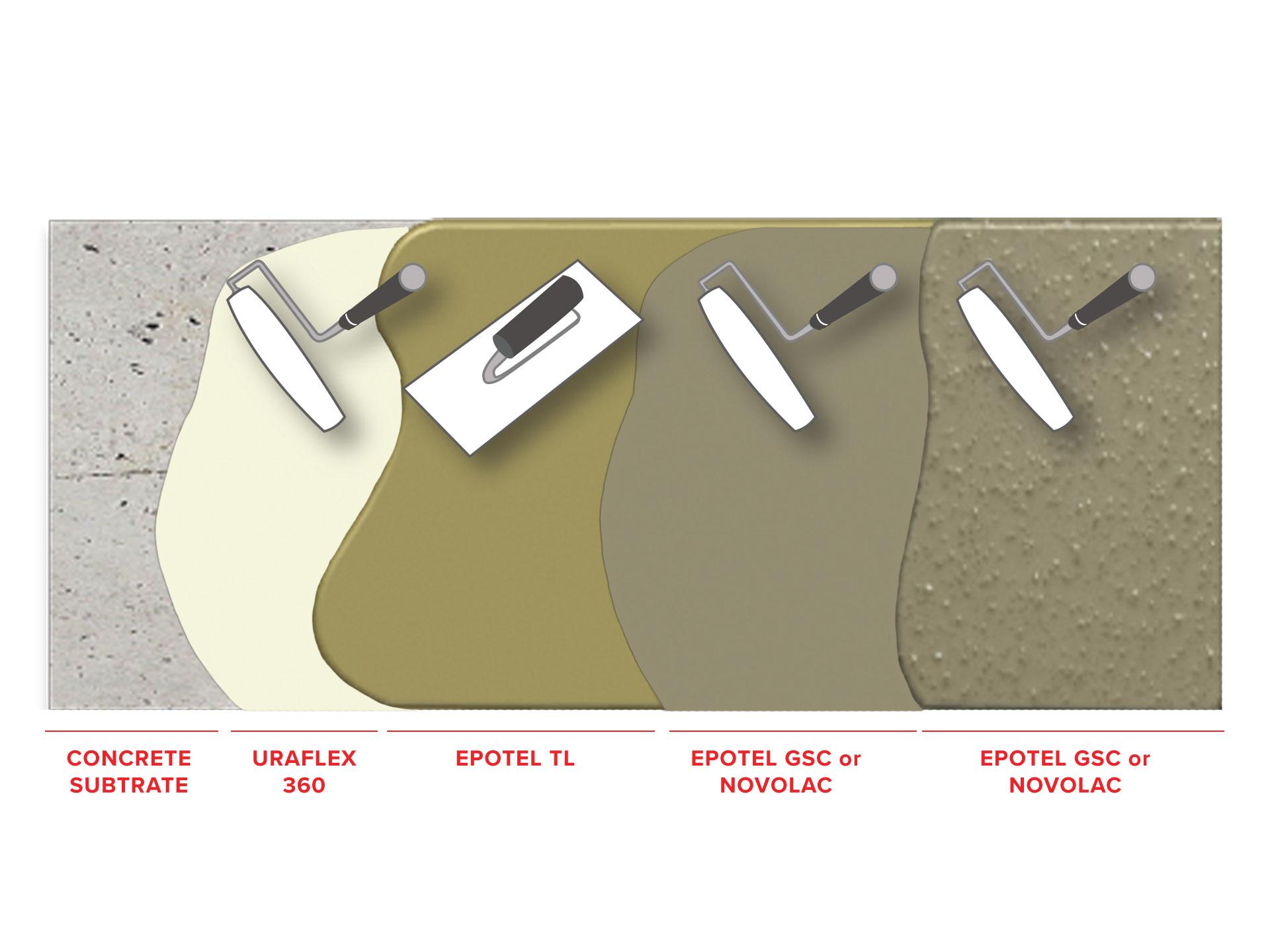

Uraflex Garbage Room Waterproofing (Heavy Duty) System is a very high-performance system designed for suspended slab high traffic garbage rooms in most commercial, residential and institutional complexes. The system consists of an elastomeric membrane base coat, Uraflex 360 Elastomeric Polyurethane Waterproofing Membrane, Duracrete Troweled Mortar Epoxy System and a durable, chemically resistant topcoat, Uraflex 100.
- Outstanding abrasion resistant and elastomeric properties
- Waterproofing Membrane
- Potential LEED Credits
- Very low odour, minimal disturbance for tenants
- Durable and long-lasting
- Easy to clean
- Very thick build troweled epoxy coating system
- Protects from hairline cracks
- Protects from wear from heavy bins and wheels
Uraflex Garbage Room Waterprooing (Heavy Duty) Sysetm is intened for use on suspended slab rooms that receive traffic and abnormal rates of wear. The system is used as a protective waterproofing system for light ot medium use commerical, institutional and high-rise residential garbage rooms. It is ideal for very heavily used garbage rooms, extra heavy duty service rooms and heavily used equipment rooms.
| Colours | Please see Durex® Colour Selection Guide for available colour options. |
|
| Coverage | Membrane (Uraflex 360) Trowel Mortar (Epotel TL) (Durex® Epotel TL + Durex® TL Aggregate) - TL Aggregate Grout Coat (Epotel GSC or Epotel Novolac) Topcoat (Epotel GSC or Epotel Novolac) |
1.2 m2/L (50 ft2/gal) @ 32 mils 2.4L Liquids Kit 15kg dry aggregate (18 SF @ ¼) 1.5-2 m2/L (80-120 ft2/gal) @ 15-20 mils WFT 2-3 m2/L (120-160 ft2/gal) @ 10-15 mils WFT |
| Service Temperature Range | Min. 0°C/Max. 50°C/Quick Term 95°C |
| Compressive Strength @ 7 days | ASTM C579 |
12,000 psi |
|
| Tensile Strength | ASTM C307 |
1,100 psi |
|
| Flexural Strength | ASTM C580 |
4,250 psi |
|
| Bond Strength | ACI 503R |
350 psi concrete fails |
|
| Thermal Coefficient of Expansion | ASTM D696 |
0.00635 mm/inch per 0°C (0.000025 in.) |
|
| Abrasion Resistance - CS-17 wheel, 1 kg. load, 1000 rev. | ASTM D4060 |
35-45 mg maximum weight loss |
|
| Thermal Shock Resistance | ASTM C884 |
Passes |
|
| Water Absorption | ASTM C413 |
0.1% |
|
| Flammability | ASTM D635 |
Self-extinguishing
|
|
| Impact Resistance | MIL D-3134F |
16 foot-pounds concrete fractures |
|
| Indentation | MIL D-3134F |
No indentation |
| System Layer | Optional Products Per Layer | Notes |
|---|---|---|
| Membrane | ||
| Trowel Mortar | + Duracrete Trowel Aggregate |
|
| Grout Coat | ||
| Top Coat |
