EMC
Acrylic Elastomeric High Build Protective & Decorative Coating
Coverage

4.9 m2/L (200 ft2 / gallon) @ 10 mils WFT (5 mils DFT)

46.5 m2 / pail (500 ft2 /pail) @ 2 coats (10 mils DFT)

NMS
09963
Description

EMC is a 100% acrylic based elastomeric high build protective waterproof wall coating. Its unique formulation permits bridging of minor cracks which can normally appear in walls. A breathable coating, EMC provides an effective weather shield for wall surfaces.

Advantages
  • High flexibility; up to 300% elongation with 100% recovery
  • Retains flexibility at low temperatures to -40°C
  • Low dirt pick-up (wall remains cleaner even in high pollution areas)

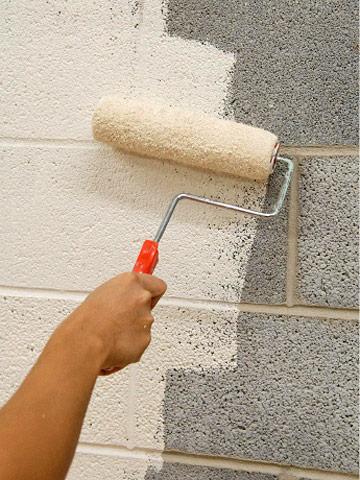

  • Easy to apply
  • Excellent adhesion to cementitious substrates
  • Permeable; allows wall to breathe and trapped water vapour in wall to evaporate
  • Long-term weatherability
  • Excellent resistance to ultraviolet rays
  • Permanently bridges existing minor cracks
Uses

EMC can be applied over any solid wall substrate including but not limited to the following:

  • Clean concrete and masonry and all other types of cementitious surfaces
  • Ideal for both exterior and interior surfaces
  • Ideal for coating stone, precast, exposed aggregate surfaces
  • Ideal for recoating existing stucco surfaces with minor cracks, cement plaster and EIFS
  • Suitable for recoating previously painted surfaces
Physical Properties

Product type

Acrylic based elastomeric coating

Density

1.20 - 1.34 Kg/lt

Viscosity

3500 - 4500 cps - ASTM D2196

127 - 135 KU - ASTM D562

Ph Level

9.0 to 9.5

Toxicity

Non-toxic

Minimum film forming temperature

5°C

Shelf life

3 years

Coverage
  • 4.9 m2/L (200 ft2 / gallon) @ 10 mils WFT (5 mils DFT)
  • 46.5 m2 / pail (500 ft2 /pail) @ 2 coats (10 mils DFT)

Coverage rate will vary according to the porosity and roughness of the surface being coated. Very rough or porous surfaces may require more than 2 coats to provide the required minimum 10 mils dry film thickness.



Performance Properties
Method Results
Film thickness

10 mils 2 coats (dry)

Water Vapour Permeance

ASTM E96

858.2 ng/Pa.s.m² (15 US Perms) @ 25°C

Flexibility

ASTM D322

180° over 1/8" rod at -20°C no cracking

Curing time

2 hours tack free (at 20°C); 48 hours full cure (at 20°C)

Adhesion

ASTM D4541-17

220 newton axial load: pass

Ultimate Tensile Strength

ASTM D412

203 psi @ 25°C; 710 psi @ 0°C

Elongation at Break

ASTM D412

355% @ 25°C; 130% @ 0°C

Dirt pick-up resistance

ASTM D3719

Excellent

Recovery after 24 hrs

ASTM D412

100%

Salt Spray Resistance

ASTM B117

Pass 300 hrs

Reduction of Chloride Penetration

ASTM C1202

98%

Elongation %

ASTM D412

350%

Accelerated Weathering

ASTM G155

Pass 5000 hrs.

Freeze / Thaw resistance

ASTM C67

Pass 50 cycles

Mildew Resistance

ASTM D3273

No Growth

Colour Uniformity

ASTM D1729

Pass 5000 hrs
