Architectural & Decorative Finishes
Graffiato
Acrylic High Build Coarse Grained Texture Coating
Coverage

9.3 m2/pail (100 ft2/pail)

NMS
09966
Product Description
Technical Performances
Documentation
Description

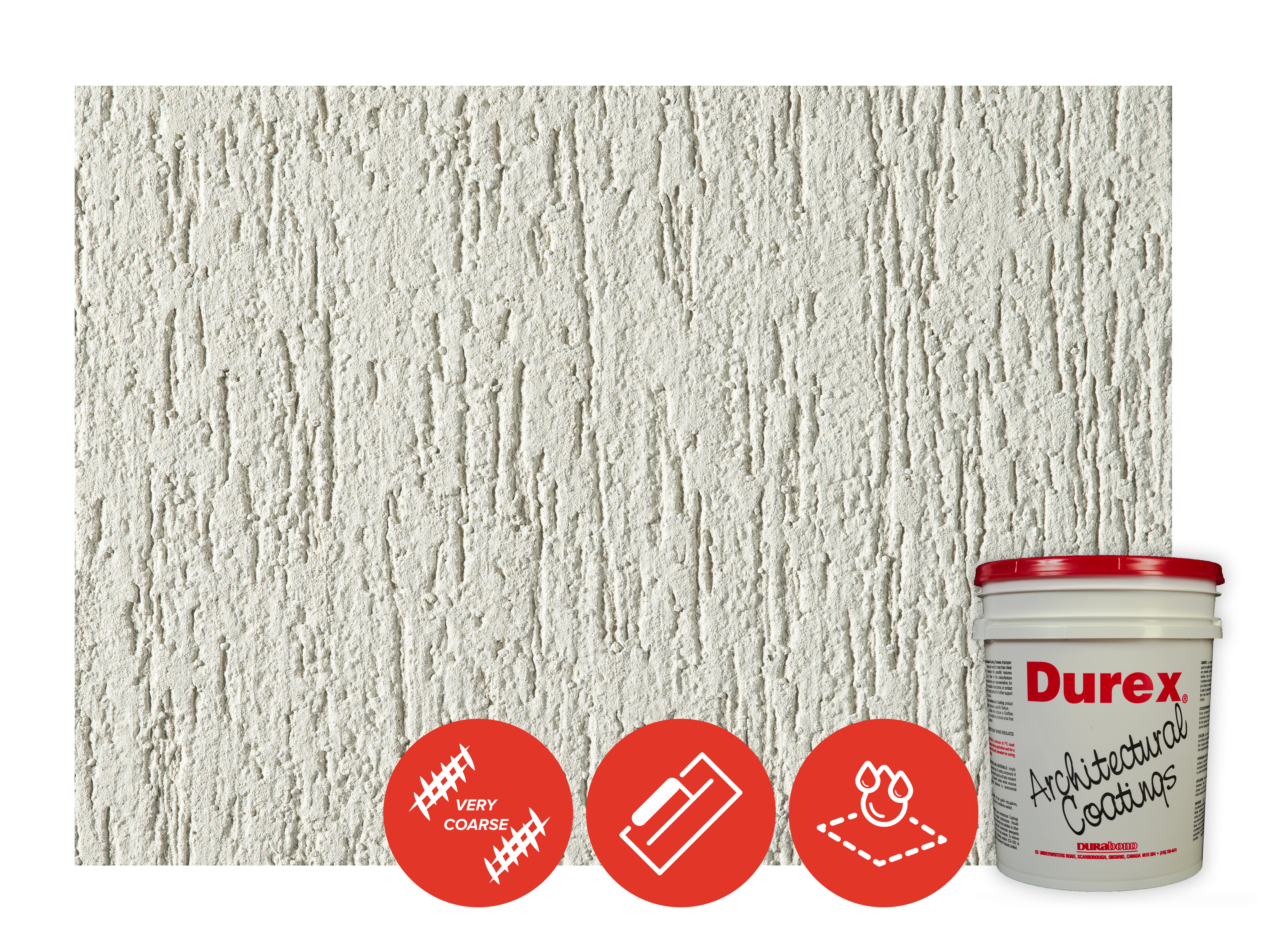

Graffiato is a high build, protective coating combining a blend of silica sands embedded in a clear, 100% acrylic resin and iron oxide pigments. This product is part of the Durex® Architectural Wall Coatings.

Advantages
  • Exceptional durability.
  • Excellent water repellency; protects surfaces from moisture penetration.
  • Breathable coating; allows water vapour within the wall system to evaporate.
  • Excellent adhesion to substrate.
  • Colourfast, not affected by ultra-violets rays.
Uses

Graffiato is used as an effective long wearing protective coating over all types of solid substrate. Graffiato is mixed to match selected colours.

Physical Properties

Product type

Water based acrylic coating with integral quartz aggregates

Appearance

Dense paint/sand-like consistency (ready mixed)

Toxicity

Non-toxic

Density

1.67 kg/lt

Bulk pot life

2 years in can (sealed)

Coating Thickness

1 coat - 1.5 mm

Coverage

9.3 m²/pail (100 ft²/pail)

Surface requirements

Primed with Durex® Brush Coat


Performance Properties
Method Results
Freeze/Thaw stability

ASTM C67

Pass

Water Vapour Transmission

ASTM E96

685 ng/Pa.s.m² (12 perms)

Water Absorption

ASTM D570

3.50%

Surface burning Characteristics

CAN4-S102

  • Flame spread – 8
  • Smoked developed < 5
  • Smoked contributed < 5
Dry adhesion

ASTM D4541

1.30 MPa (188 psi)

Alkali Resistance

ASTM D1308

Pass - No blistering, wrinkle, lift or change in colour

Accelerated Weathering Resistance

ASTM G155

Pass 2000 hrs
