Dur-A-Quartz Decorative Quartz Trowel System is a thick build multi-coloured decorative floor overlayment engineered to create a durable, seamless floor that is aesthetically pleasing. Installed at a nominal thickness of 3-6mm (1/8” – 1/4”), Dur-A-Quartz Decorative Quartz Trowel System is an attractive, durable flooring system designed to restore damaged concrete or protect new concrete from impact, abrasion, wear, and mild chemicals in a variety of institutional, commercial and industrial environments.
- Aesthetically pleasing, multi-coloured finish
- Extremely durable
- 100% solids, zero VOC resins
- Can be hand or power troweled
- Moisture insensitive during application and cure
- Seamless
- Available with integral coving
- Will not support growth of fungus or bacteria
- Easy to clean and maintain
- CFIA approved and USDA accepted

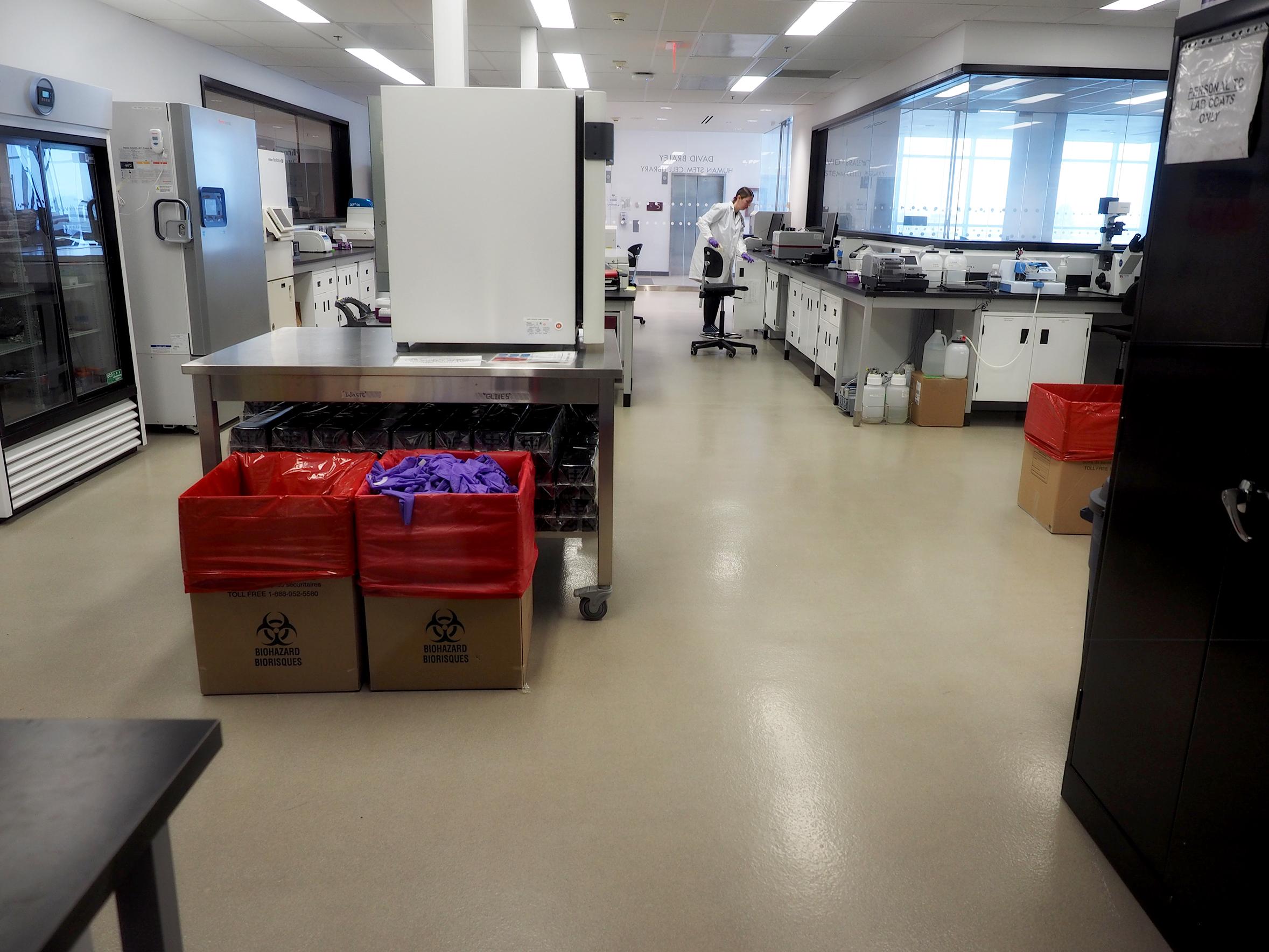

Dur-A-Quartz Decorative Trowel System is used to beautify and protect concrete which will be exposed to mechanical and/or chemical abuse, or to resurface, level, pitch or slope existing floor slabs in decorative applications. The system is to be installed where utmost protection against mechanical abuse is required and where an aesthetically pleasing finish is desired. Dur-A-Quartz Decorative Quartz Trowel System is ideal for showers, locker rooms and wash-down areas, commercial areas, grocery stores, laboratories, hallways, recreational facilities, public institutions and buildings and offices.
| Colour | Please see Durex® Dur-A-Quartz Colour Selector for available colour options. |
|
| Coverage | Primer: (Durex® Epotel TL) Durex® Dur-A-Quartz Decorative Quartz Trowel Mortar (Durex® Epotel TL + Durex® Coloured Quartz)
Grout Coat (Durex® Epotel GSC Clear) Top Coat (Durex® Acrutel 50) |
5 m2/L (200 ft2/gal) @ 8 mils - 1 gallon Epotel TL + 66lbs Quartz: - 35 ft2 @ ¼” : 3.25m2 @ 6mm - 70 ft2 @ 1/8”: 6.5m2 @ 3mm - 2-3 m2/L (80-160 ft2/gal) @ 10-20 mils WFT 1.5-2 m2/L (80-120 ft2/gal) @ 15-20 mils WFT 7.5m2/L (300ft2/US gal) @ 3 mils DFT |
| Pot Life | 25 minutes |
|
| Service Temperature Range | Minimum: 0°C/Maximum: 50°C/Quick Term: 95°C |
| Compressive Strength @ 7 days | ASTM C 579 |
7,500 psi |
|
| Tensile Strength | ASTM C 307 |
1,100 psi |
|
| Flexural Strength | ASTM C 580 |
2,050 psi |
|
| Water Absorption | ASTM C 413 |
0.1% |
|
| Flammability | ASTM D 635 |
Self-extinguishing |
|
| Impact Resistance | MIL D-3134F |
16 foot-pounds concrete fractures |
|
| Indentation | MIL D-3134F |
No indentation |
|
| Bond Strength | ACI 503R |
350 psi concrete fails |
|
| Thermal Coefficient | 0.000025 inch |
||
| Expansion | ASTM D 696 |
Per inch per 0°F |
|
| Abrasion Resistance - CS-17 wheel, 1 kg. load, 1000 rev. | ASTM D 4060 |
35-45 mg. max weight loss |
|
| Thermal Shock Resistance | ASTM C 884 |
Pass |

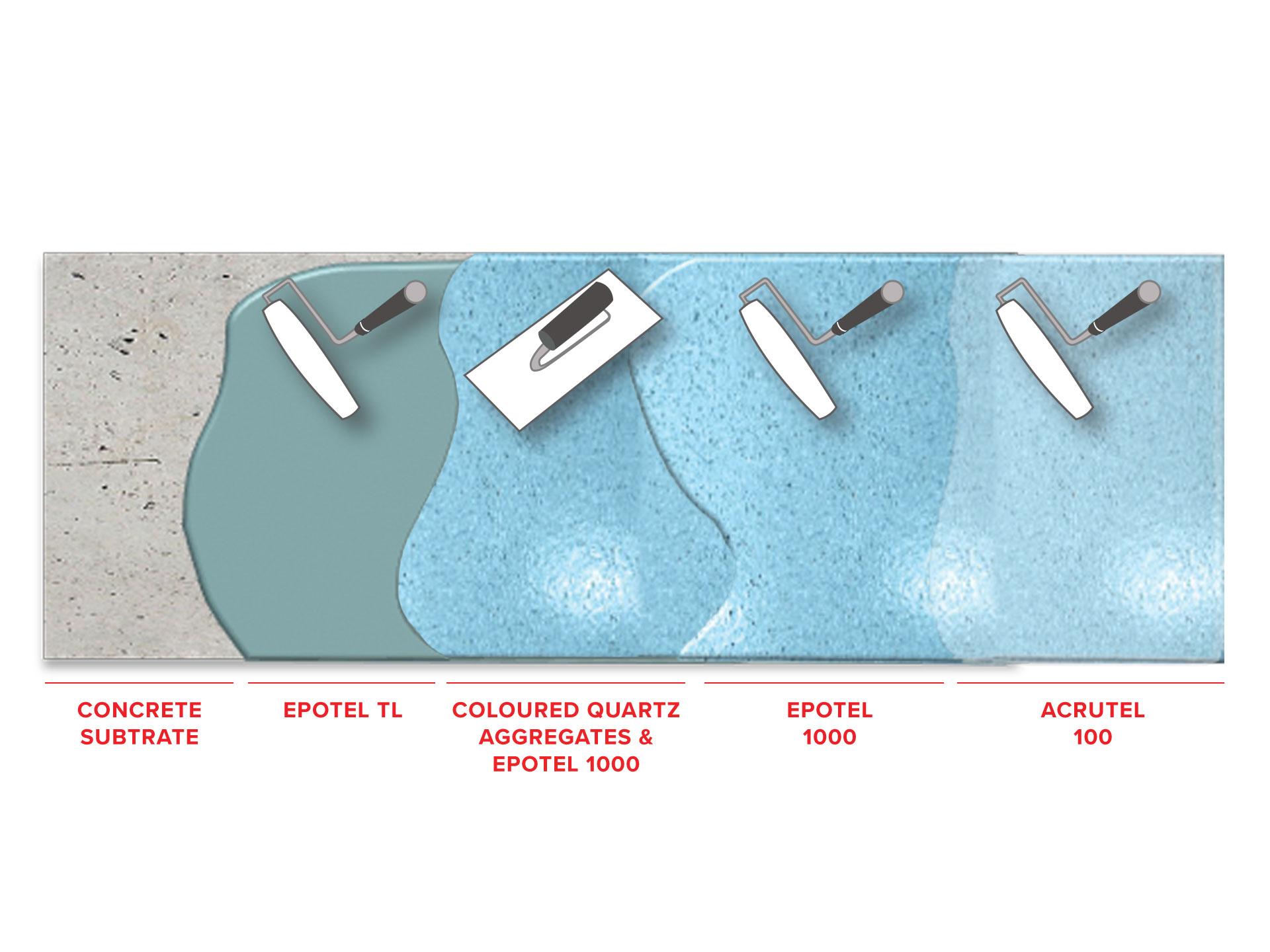

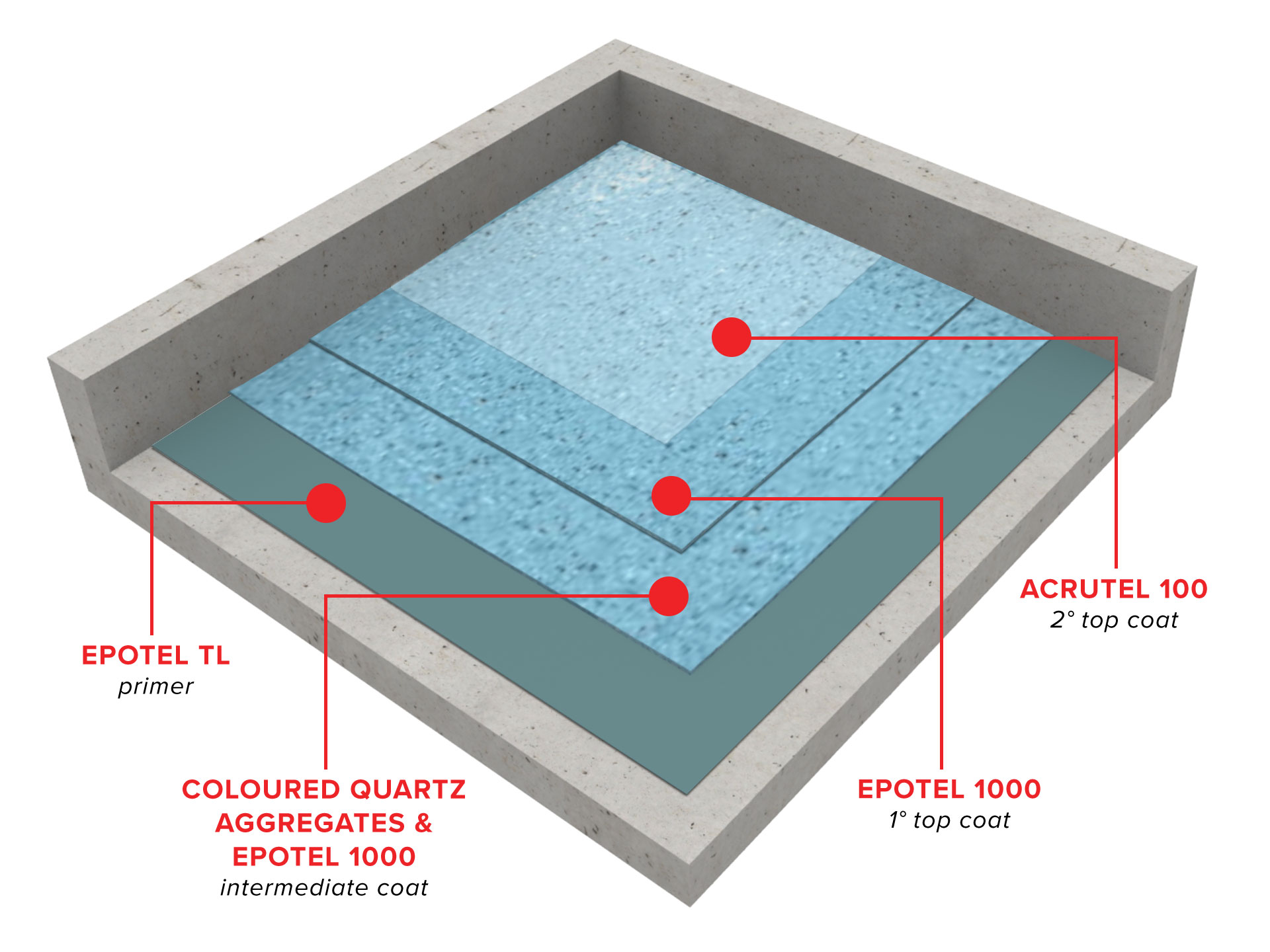

| System Layer | Optional Products Per Layer | Notes |
|---|---|---|
| Primer | Optional Optional Optional Optional |
|
| Intermediate Coat | + Dur-A-Quartz Trowel Aggregate |
|
| Grout Coat | ||
| Polyurethane Top Coat | Optional Optional |
