Uraflex 375 UV
Non-Yellowing Elastomeric Polyurethane Traffic Bearing Topcoat
Coverage
NMS
071816
Description

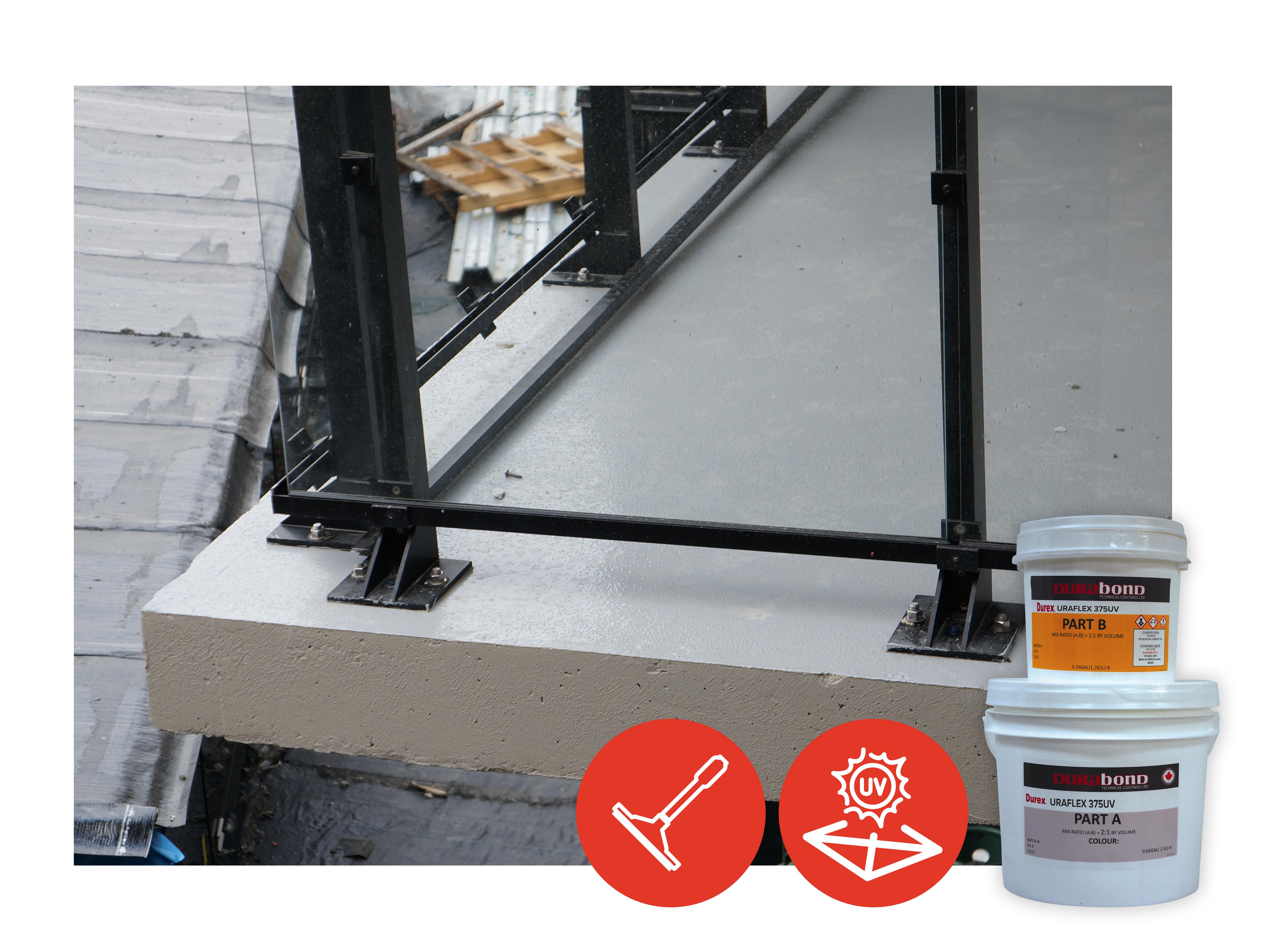

Uraflex 375 UV Non-Yellowing Elastomeric Polyurethane Traffic Bearing Topcoat is a liquid applied, two-component, 100% solids elastomeric polyurethane topcoat. It is specifically formulated to adhere to Uraflex 360 Elastomeric Polyurethane Waterproofing Membrane and Uraflex 361 Elastomeric Polyurethane Traffic Bearing Topcoat to form a highly effective, UV stable, abrasion resistant, elastomeric traffic bearing waterproofing system.

Advantages
  • 100% solids, zero VOC.
  • Potential LEED credits, high recycled content.
  • Excellent UV Resistance, featuring non-yellow aliphatic urethane resin technology.
  • High abrasion resistance, resilient elastomeric coating.
  • Outstanding water impermeability & sealing properties.
  • Excellent water immersion properties.
  • Self-cleaning, fast curing; easy to apply and maintain
Uses

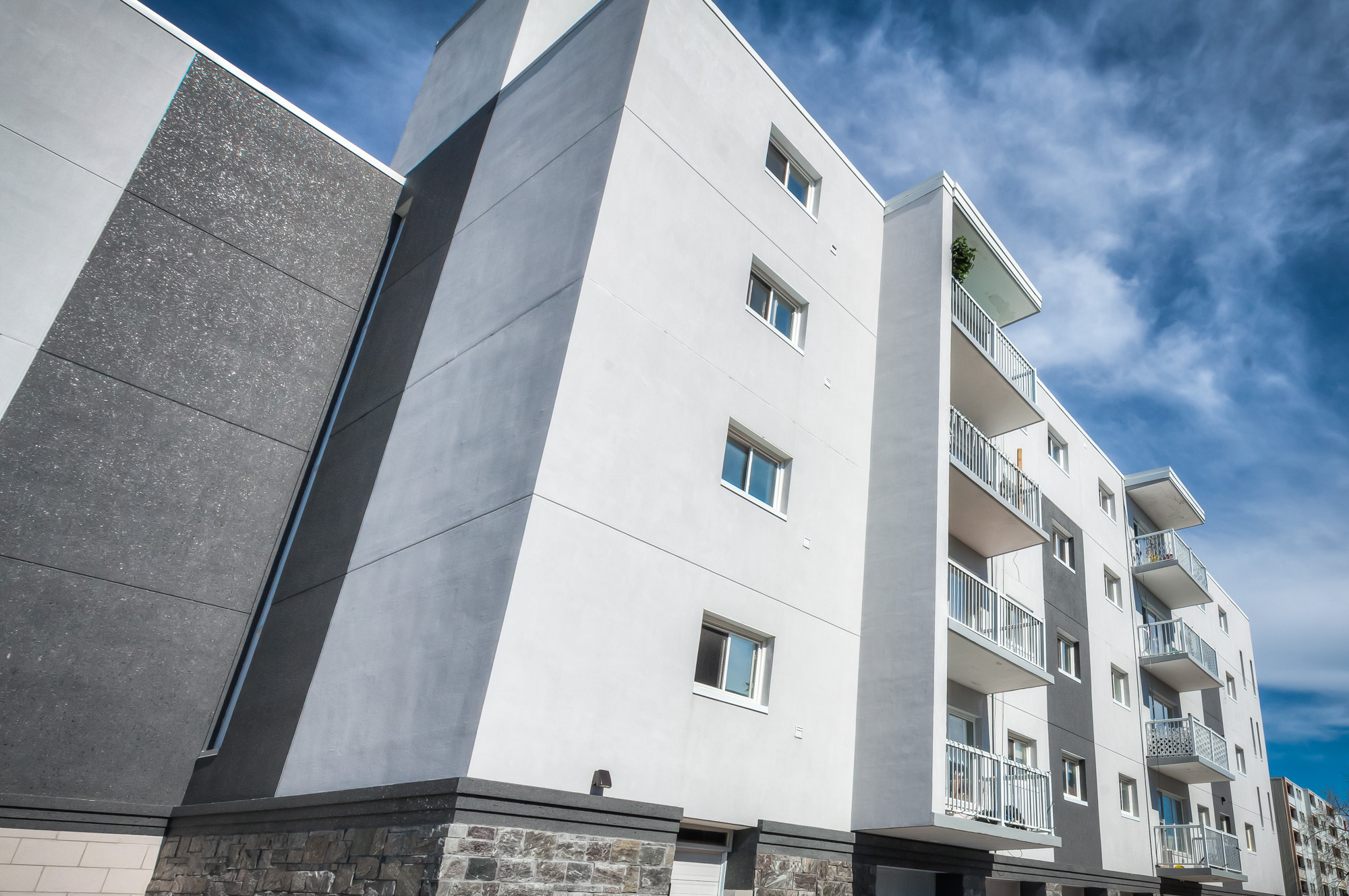

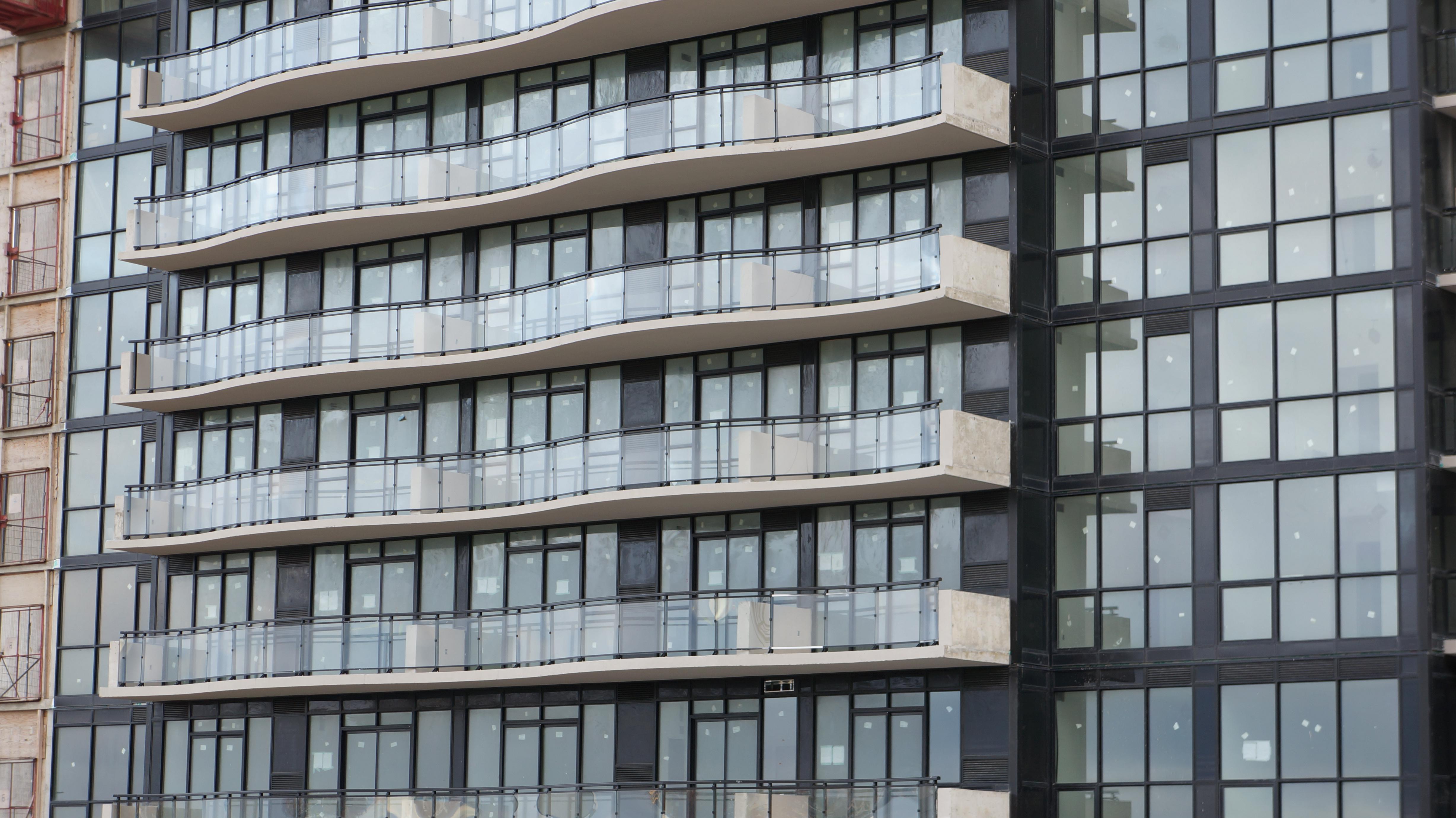

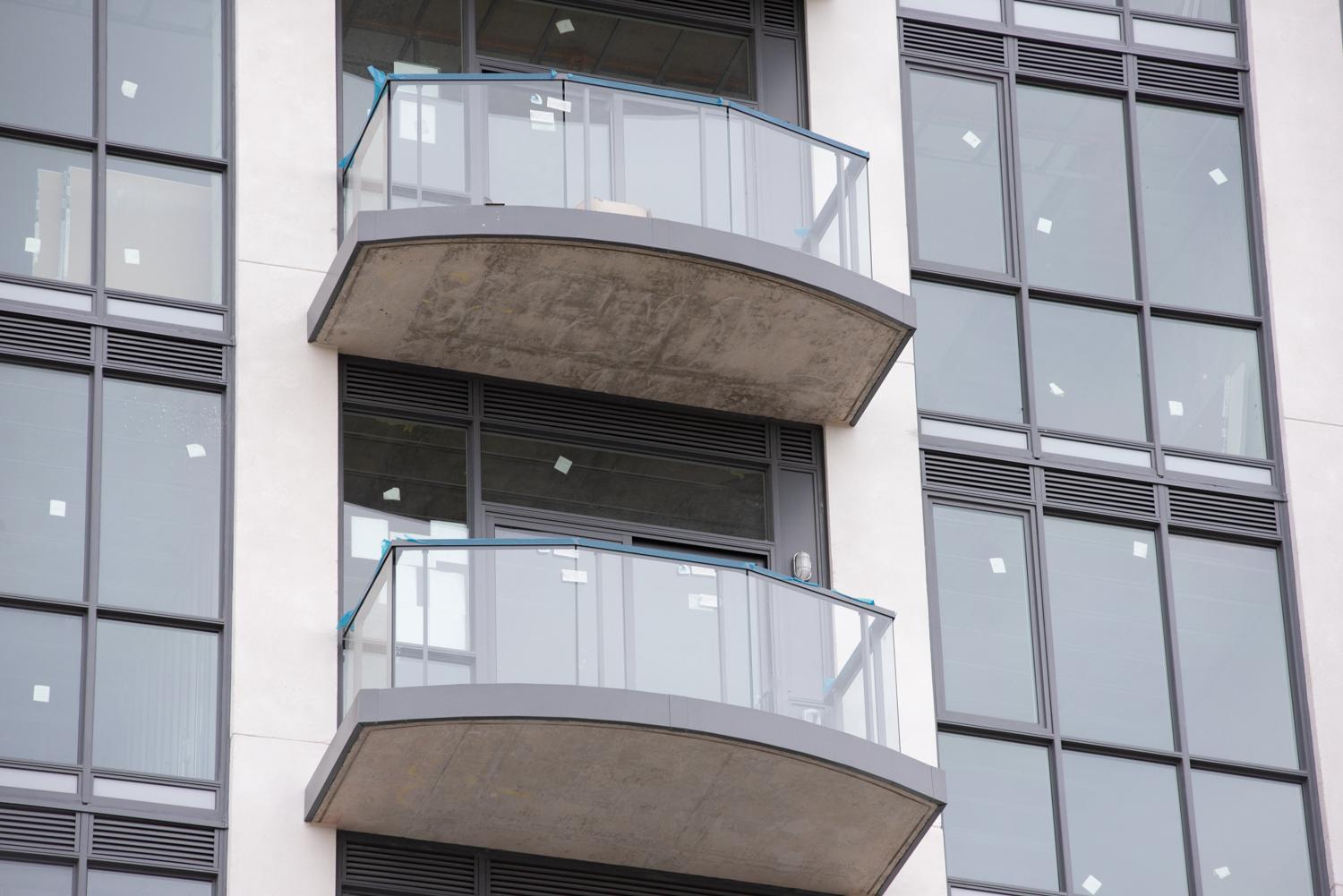

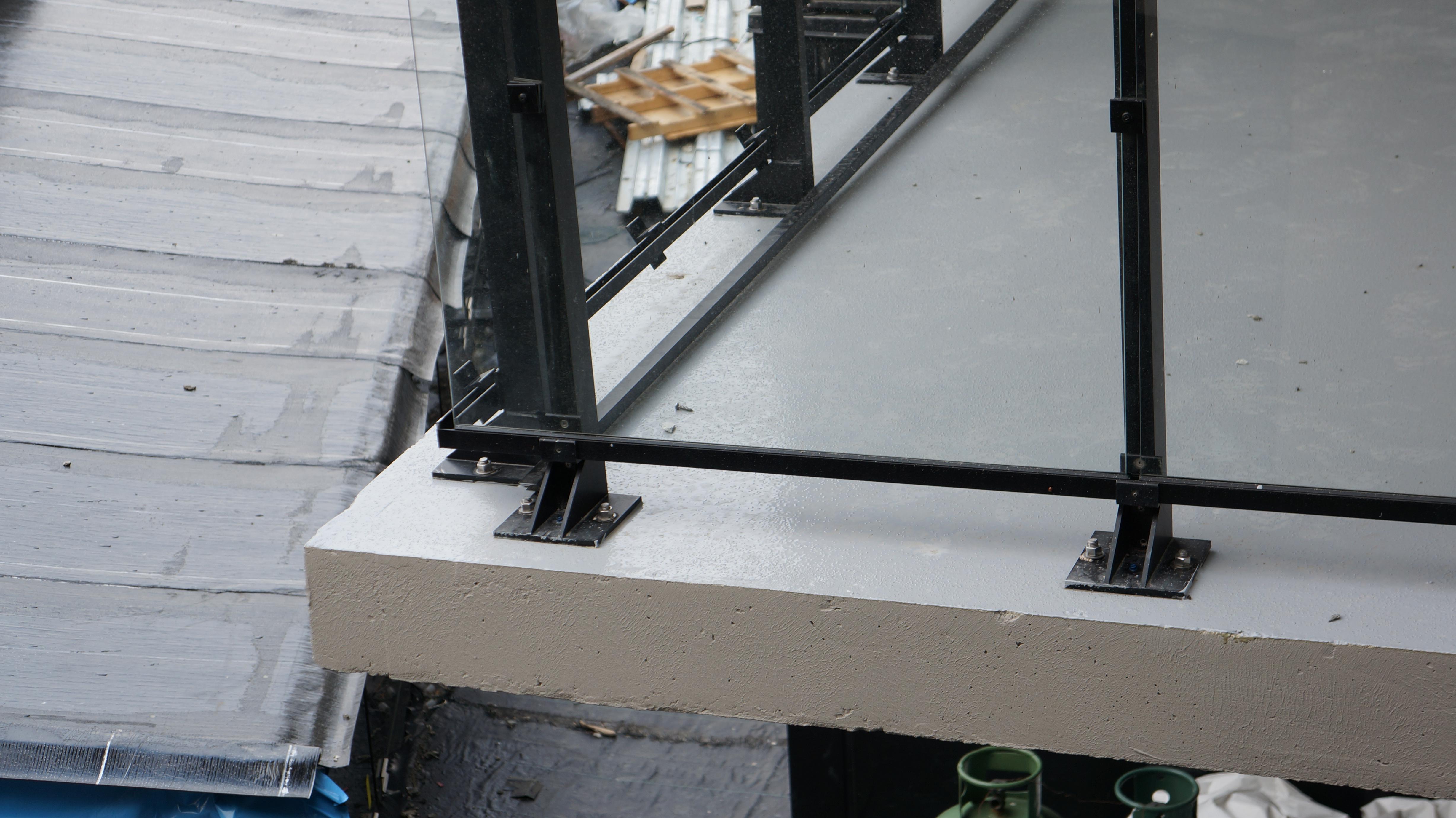

Uraflex 375 UV Non-Yellowing Elastomeric Polyurethane Traffic Bearing Topcoat is engineered to provide a tough, durable, resilient topcoat for outdoor traffic bearing surfaces subjected to UV exposure. It can be re-coated for additional wear resistance and used with aggregates for non-slip performance. Uraflex 375 UV is ideal for: Exposed parking decks and vehicular ramps, Plaza decks, pool and outdoor recreational decks, Open Stadiums and sporting arenas, Exposed Balcony terraces, pedestrian bridges and walkways, Petrochemical refineries, as well as Areas exposed to UV rays.

Physical Properties

Resin Type

Aliphatic Polyurethane

Cure Time @ 35-40°C
  • To touch: 5 hours
  • To recoat: 6-8 hours
  • To Traffic: 48 hours
  • Fully cured: 7 days
Pot Life

20 minutes @ 23°C

Recommended Film Thickness

10-15 mils DFT

Recycled Content

53%

Mix Ratio
  • 2 Component Kit - 2:1 (by Volume)
  • Part A (resin) : Part B (hardener)


Performance Properties
Method Results
Percent Solids

ASTM D7232

100%

V.O.C.

ASTM D3960

0 g/L

Specific Gravity

ASTM D333

1.25 ± 0.05 g/L

Viscosity

ASTM D2196

1500 cps

Abrasion Resistance

ASTM 5178, CS-17 wheel

11 mg loss, 1000 g load, 1000 cycles

Tensile Strength

ASTM D412

2,075 psi

Tear Strength

ASTM D624

171 lb-lin.inch (30 KN/ lin. meter)

Elongation

ASTM D412

200%

Flexural Modulus

ASTM D522

2 mm film passes 12 mm mandrel

Low Temperature Flexibility

1/8” Mandrel @ -26oC

Pass

Water Absorption

ASTM D570

< 0.5%

Water Vapour Transmission

ASTM E96

0.29 metric perm

Shore A Hardness

ASTM D2240

95

Chemical Resistance

ASTM D543

  • 30% NaOH = 0.40%
  • 10% H2SO4 = 0.45%
  • 30% NaCI = 0.20%
  • Diesel Fuel = 5.0%
