Barrier Seam Tape is a thermally set, spun-bonded polyester non-woven fabric made up of 100% continuous polyester filament fibers that are randomly arranged and reinforced with a 5 x 5 polyester scrim for added strength and stability. XP403 has high tensile and tear strength, wets out well with both cold applied cutbacks and emulsions, non-raveling, moisture, rot and mildew resistant, lightweight, good sunlight resistance and possesses good elongation and recovery properties when properly applied. Compatible with oxidized asphalt and cold tar bitumen for use in hot mop system. Used in conjunction with our Blue Shield, Green Guard, Flexcrete, Dur-A-Mastic 100 and EctoFlex, to bridge inter-face gaps and to create continuity in the water penetration barrier within a wall assembly. Barrier Seam Tape should be used to seal joints at similar substrates, joints in dissimilar substrates and wherever water infiltration may be a concern.
- High tensile and tear strength.
- Wets out well with both cold applied cutbacks and emulsions applications.
- Moisture, rot and mildew resistant.
- UV resistant.
- Good elongation and recovery properties (when properly applied).
- Compatible with oxidized asphalt and cold tar bitumen for use in hot mop system.
- Excellent repair fabric for both new and old construction in roofing and waterproofing application.

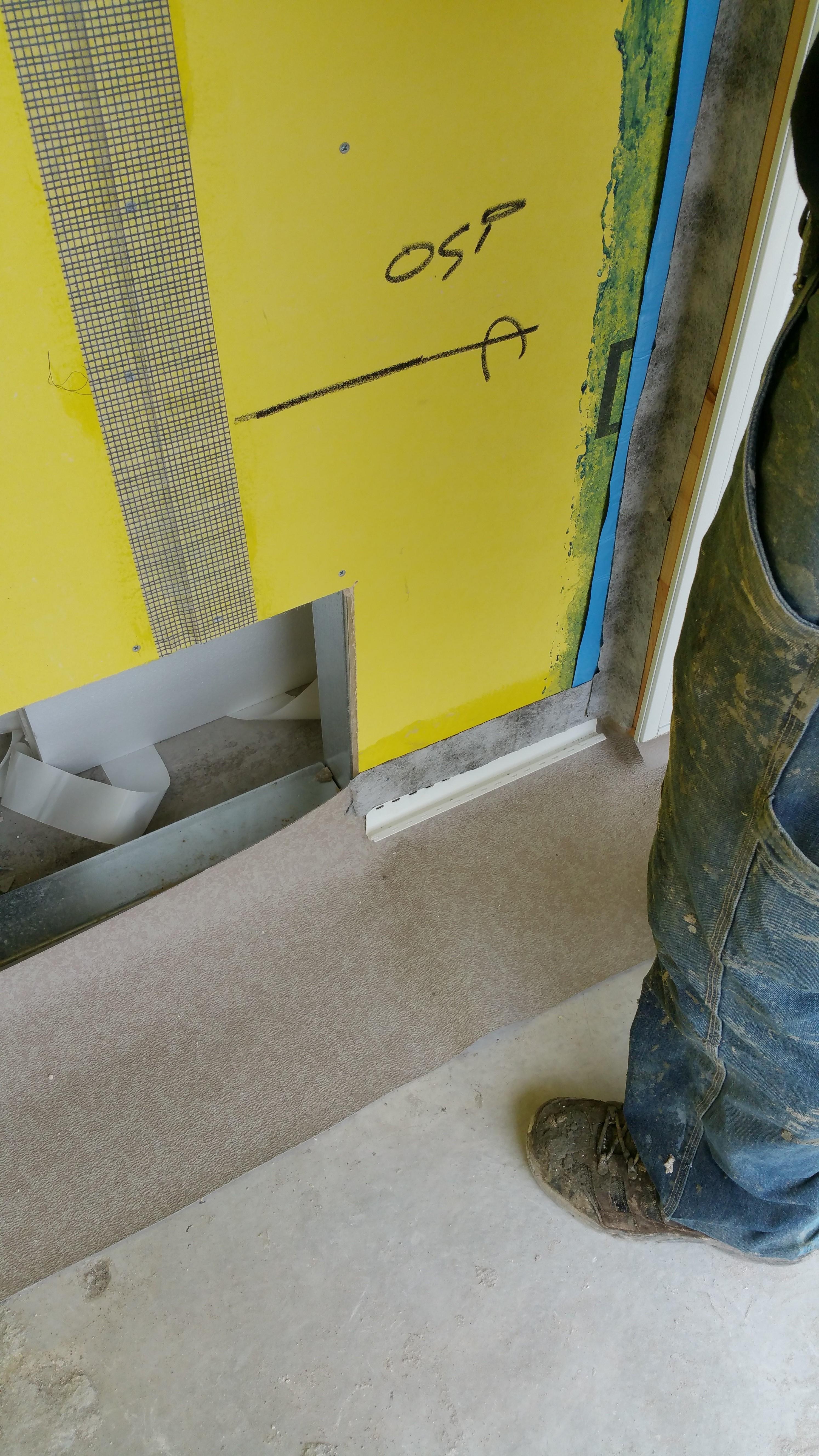

An integral component design to seal Sheathing Joints, Barrier Seam Tape Excellent repair fabric for both new and old construction in roofing and waterproofing applications. Other applications include: foundations, slabs, tunnels, subways, pipeline joint wrap, parapet wall treatment, tennis courts, and plaza decks.
|Average Net Weight (ounces per square yard)||2.25|
|Strip Tensile Strength (pounds per inch)||Machine Direction: 45 Cross-Machine Direction: 40|
|Strip Elongation at Break (%)||Machine Direction: 20 Cross-Machine Direction: 20|
|Trapezoid Tear Strength* (lbs)||Machine Direction: 12 Cross-Machine Direction: 11|
|MD Yarn||500 Denier High Temp Polyester||500 Denier High Temp Polyester (550 Dtex High Temp Polyester)|
|CD Yarn||500 Denier High Temp Polyester||500 Denier High Temp Polyester (500 Denier High Temp Polyester)|
|Pattern||5 x 5 yarns/inch||5 x 5 yarns/inch (2 x 2 yarns/cm)|
|Tensile||50 x 45 lbs/inch||50 x 45 lbs/inch (445 x 400 N/5cm)|
|Weight||2.13 (oz/yd2)||2.13 (oz/yd²) (72 (g/m²))|
|Coating||F.R. PVCF.R. PVC||F.R. PVCF.R. PVC|
|Substrate||1 layer of 0.5 (oz/yd2) Spunbond Polyester||1 layer of 0.5 (oz/yd²) Spunbond Polyester (1 layer of 17 (g/m² Spunbond Polyester)|
