Standard Mesh
Standard Duty Reinforcing Fiberglass Mesh (4.3 oz)

450 ft² (41.8 m²) per roll (38")

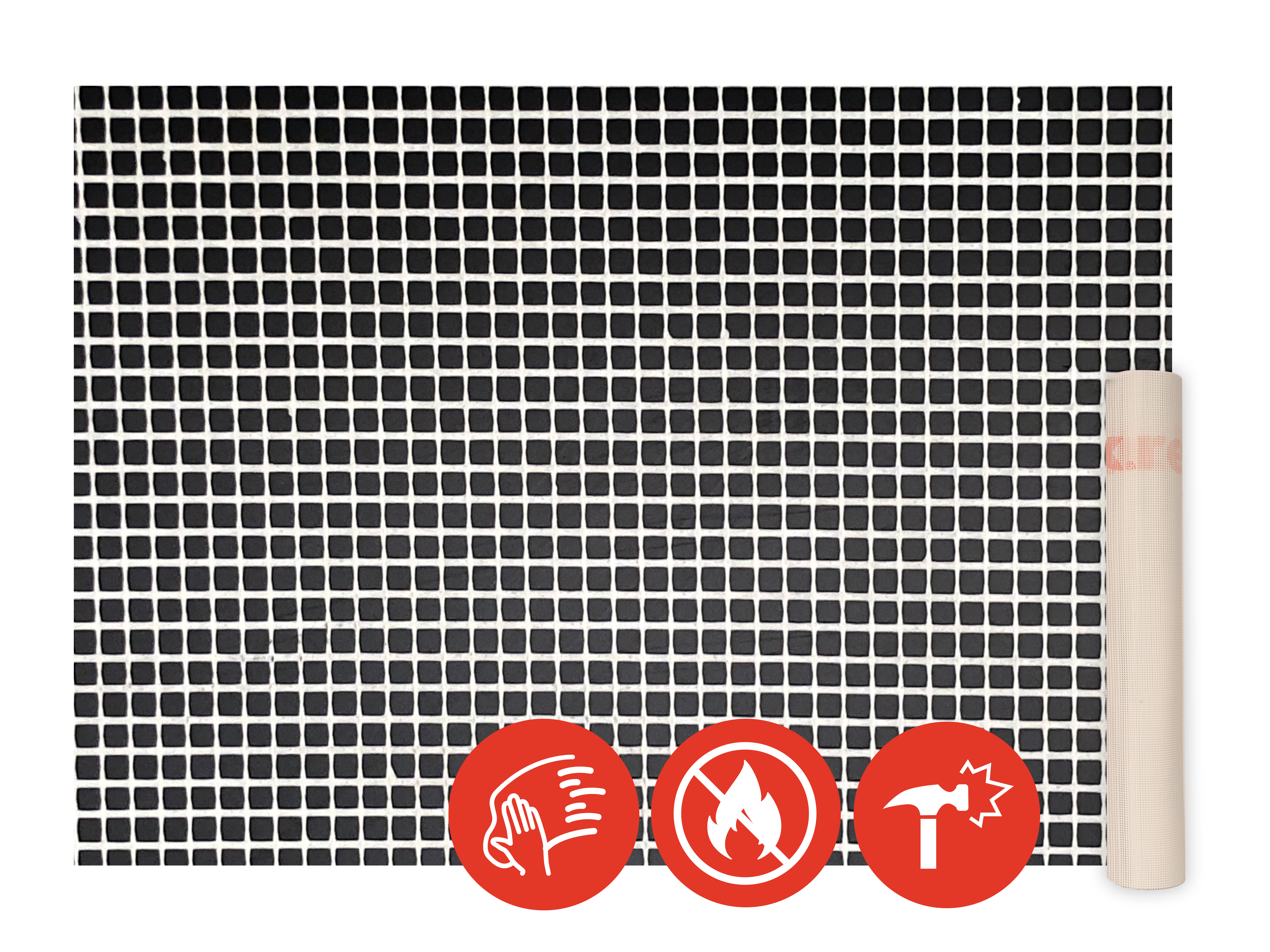

Standard Mesh is an alkaline coated fiberglass fabric which is suitable to work as reinforcement for polymer modified and polymer-based cementitious base coats, and used as the minimum grade reinforcing mesh layer in all Durex® EIFS Systems (with the exception of mechanically fastened EIFS systems) and Durex® Stucco Lite System. Standard Mesh is produced on a loom using warp and weft (fill) yarns and woven into a leno weave, where the fill yarns are trapped tightly between to twisting wrap yarns, and is then treated by alkali-resistant macromolecule latex for superior performance. Standard mesh is available in two forms, Regular and Adhesive and in various roll widths.

  • Fiberglass mesh of tested quality, capable of withstanding high tension without stretching.
  • Glass fibers with negligible sensitivity to temperature changes within the wall.
  • Proper fiberglass anti-alkaline dressing to avoid quick aging of the wall reinforcement due to corrosion action of alkalis present in coating mortar.
  • Provides dimensional stability and enhances performance.
  • Prevents cracking.
  • Good cohesion.
  • Highly flexible.

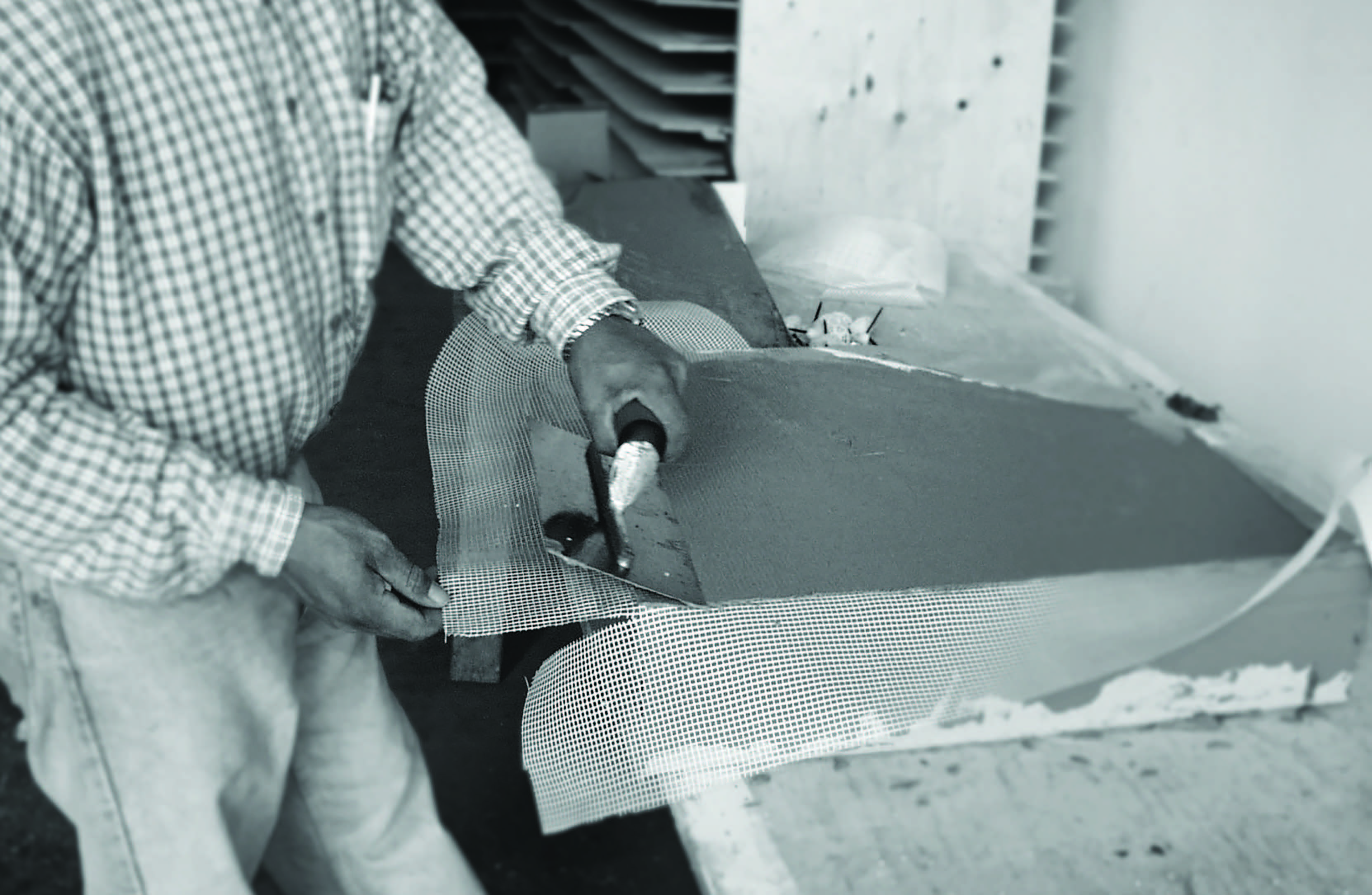

Standard Reinforcement Mesh for the base coat layer in all chemically adhered Durex® EIFS Systems. Standard Reinforcement Mesh for Durex® Stucco Lite System. Standard Reinforcement of EctoFlex Air/Vapour barrier and Waterproofing Membrane. Reinforcement for crack bridging in masonry substrates. Upgraded Reinforcement for our Trim Coat use to coat Expanded Polystyrene (EPS) Architectural Mouldings and Build-outs.

Physical Properties
Product type

E-Glass fibers


White woven fabric with leno weave pattern


4.3 oz/yd² (145 g/m²)

Roll Widths

38", 12", 9", 4"


Alkali Resistant Coating, optional Adhesive Coating

  • 450 ft² (41.8 m²) per roll (38")
  • 150 ft² (13.9 m²) per roll (12")
  • 110 ft² (10.5 m²) per roll (9")
  • 50 ft² (4.6 m²) per roll (4")

Performance Properties
Method Results
Tensile Strength (Weft)

ASTM D5035

180 lb./in (790 N/2.54 cm) minimum values

Tensile Strength (Warp)

ASTM D5035

150 lb./in (670 N/2.54 cm) minimum values

Construction (Weft)

ASTM D3775

5 yarns/in (20 yarns/10 cm)

Construction (Warp)

ASTM D3775

6 yarns/in (24 yarns/ 10 cm)
