VCA 3.0 Insulation Adhesive
Polymer-based Cementitious Insulation Adhesive
Technical Performance Features
Insulation Adhesive with 3.0 mm coarse aggregates
Coverage

11-13 m² (120-140 ft²)

NMS
07 24 00
Description

VCA 3.0 Insulation Adhesive is a two-component polymer base cementitious insulation adhesive used with our EIFS Systems. A water based acrylic liquid component is mixed with a specially formulated dry cementitious powder containing coarse sand aggregates to create a cavity between the insulation board and the substrate.

Advantages
  • Superior adhesion to various inorganic substrates.
  • Combines the flexibility of synthetics and the strength of cement.

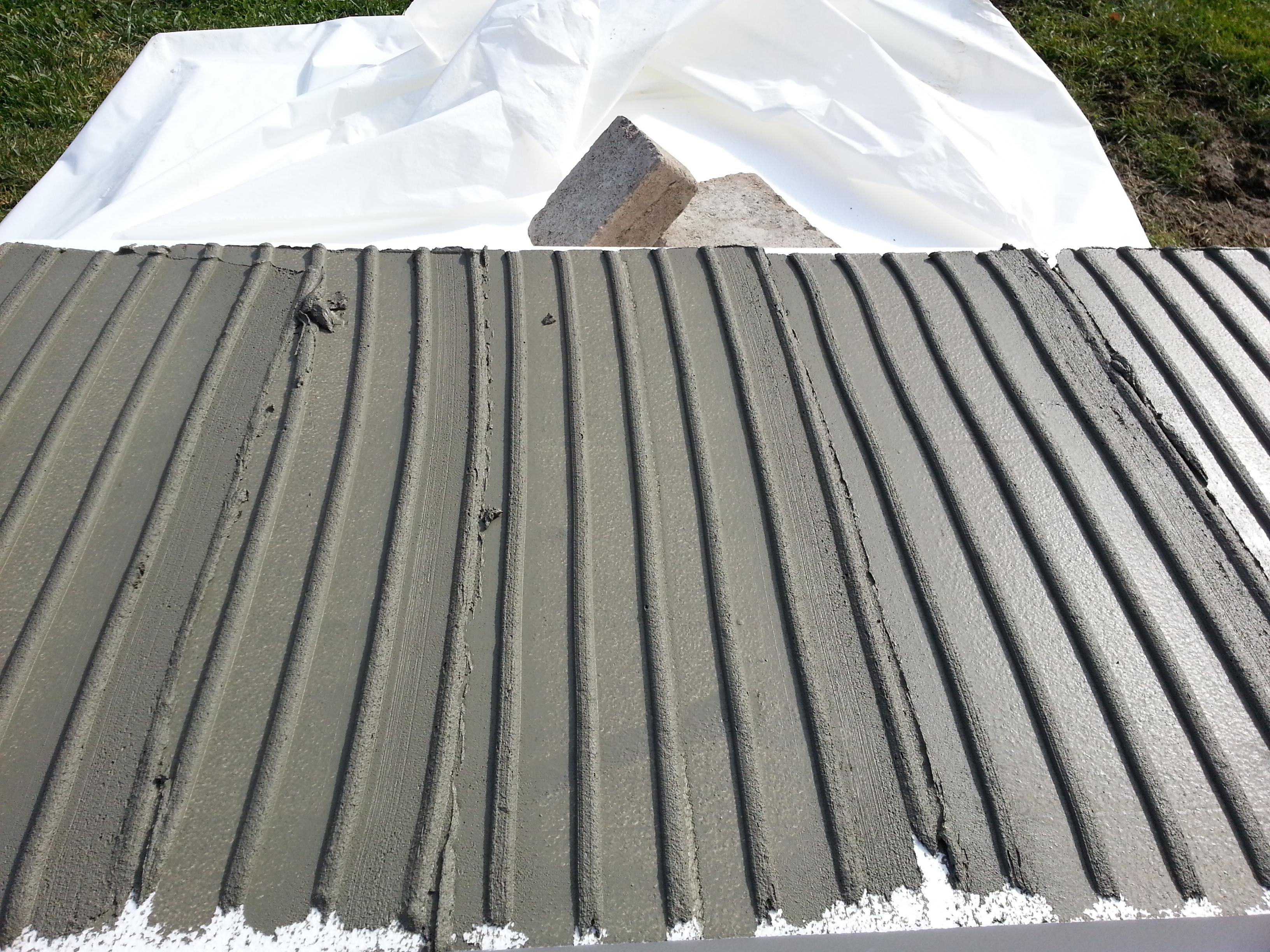

  • Coarse aggregate creates cavity between the insulation board and the substrate to allow for drainage of incidental moisture.
  • Superior adhesion to cured Green Guard, Blue Shield, Flexcrete and Dur-A-Mastic 100.
  • Allow for excellent quality control on job site.
Uses

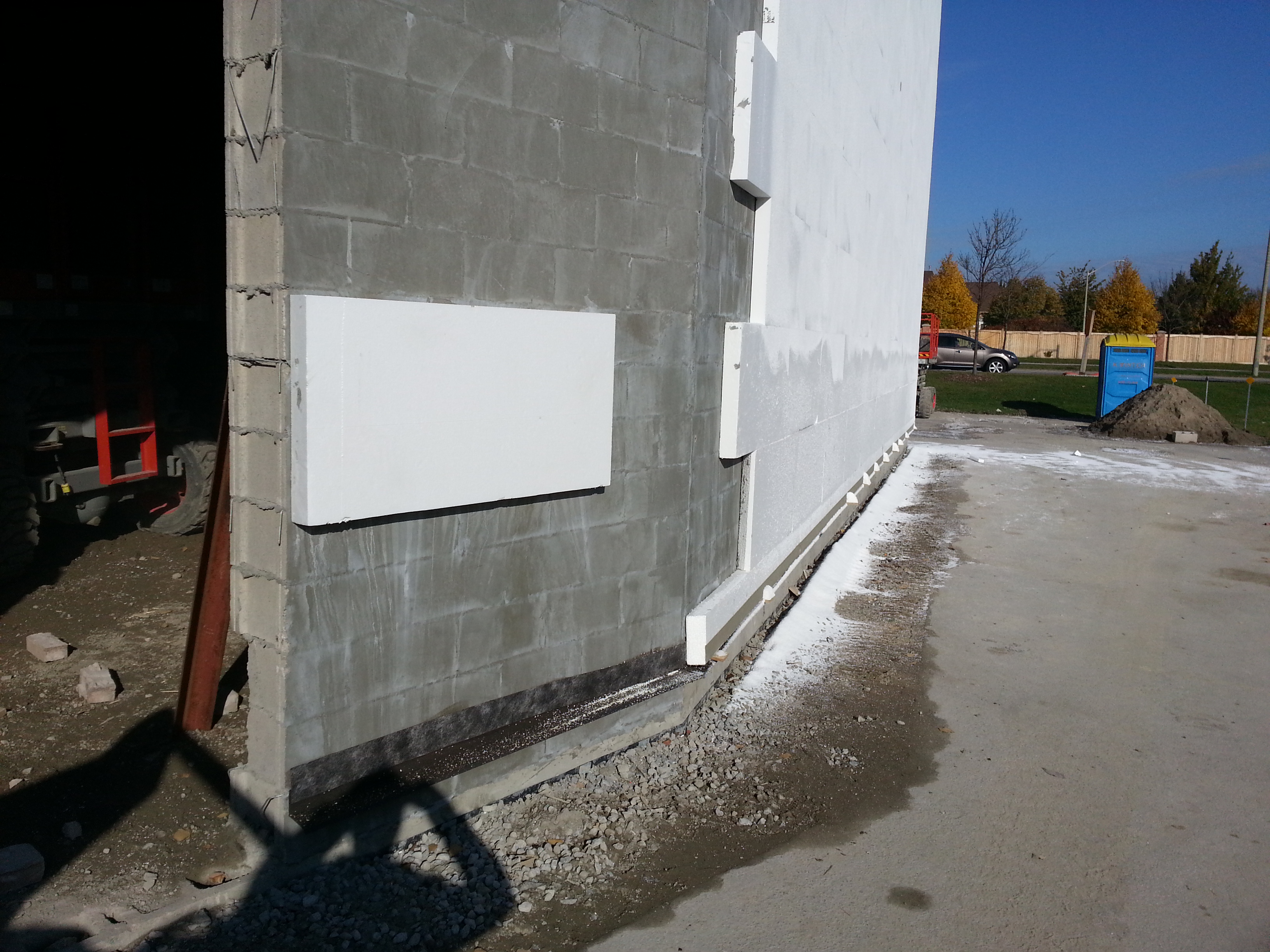

VCA 3.0 Insulation Adhesive is especially suited for adhering expanded polystyrene insulation (EPS) and extruded polystyrene insulation (XPS) to a variety of surfaces such as concrete, brick, concrete block, cement board, glass fibre faced gypsum sheathings, gypsum board, plywood and a few others.

Physical Properties

Product type

Water based acrylic, sand-filled mixture

Appearance

White semi-solid ready mixed paste

Viscosity

Pourable paste

pH Level

9.0 to 9.5

Toxicity

Non-toxic

Coverage

Each unit of Durex® VCA 3.0 Insulation Adhesive will provide approximately 11-13 m² (120-140 ft²) coverage



Performance Properties
Method Results
Tensile strength

ASTM C190

0.35 MPa (50 psi) without mesh

16.55 MPa (2400 psi) with mesh

Elongation

ASTM D412

25.0%

Flexural strength

ASTM C293

8.28 MPa (1200 psi)

Air Leakage

ASTM E283

0.0022 L/s.m² @ 3.0 mm thick

Water Vapour Permeance

ASTM E96

590 ng/Pa.s.m² (10.3 perms)
