Duracrete Trowel System - 6-9mm
Trowel Epoxy Flooring System

Duracrete Trowel System is an extremely durable, single colour, trowel applied industrial floor overlay designed to restore damage concrete or protect new concrete from high impact, abrasion, wear and mild chemicals in institutional, commercial and industrial environments. Duracrete Trowel System consists of a tough silica sand mixture embedded in a highly chemical resistant 100% solids epoxy resin, which is finished to provide an extremely durable, extra heavyduty, highly chemical resistant flooring system.

  • Extremely durable, highly abrasion resistant
  • Seamless
  • 100% solids, VOC free resins
  • Proprietary, tightly packed, easy to apply sand mixture
  • Can be hand or power troweled
  • Moisture insensitive during application and cure
  • Will not support growth of fungus or bacteria
  • Easy to clean and to maintain
  • CFIA approved, USDA accepted

Duracrete Trowel System is used to protect new concrete which will be exposed to mechanical and chemical abuse, or to resurface, level, pitch or slope existing floor slabs in industrial applications. Additional features such as chemical resistance and UV resistance can be attained by applying customizable top coats. Duracrete Trowel System is ideal for extra heavy-duty processing areas, especially for food and beverage industry, high traffic lanes and ailes, heavy-duty production and assembly floors, garbage rooms, wash-down stations, showers and locker rooms and warehouse floors where protection from mechanical abuse is desired and chemical exposure is not severe.

Physical Properties

Please see Durex® Colour Selection Guide for available colour options.

Resin Type

Primer: Epotel Multi-Primer

Trowel Mortar (Epotel TL + Durex® TL Aggregate)

Epotel TL-TL Aggregate

Grout Coat: Epotel GSC

Topcoat: Epotel GSC

5 m2/L (200 ft2/gal) @ 8 mils

-1 gallon mixed (Part A & B)

-66 lbs (30kg)

1.5-2 m2/L (80-120 ft2/gal) @ 15-20 mils WFT

-3 m2/L (120-160 ft2/gal) @ 10-15 mils WFT




Durex® Epotel TL - 2:1 by volume

Pot Life @ 23°C

Durex® Epotel TL+ Aggregate - 20 minutes

Service Temperature Range

Min. 0°C/Max. 50°C/Quick Term 95°C

Performance Properties
Compressive Strength @ 7 days

ASTM C 579

12,000 psi

Tensile Strength

ASTM C 307

1,100 psi

Flexural Strength

ASTM C 580

4,250 psi

Bond Strength

ACI 503R

350 psi concrete fails

Thermal Coefficient of Expansion

ASTM D 696

0.00635 mm/inch per 0°C (0.000025 in.)

Abrasion Resistance - CS-17 wheel, 1 kg. load, 1000 rev.

ASTM D 4060

35-45 mg maximum weight loss

Thermal Shock Resistance

ASTM C 884


Water Absorption

ASTM C 413



ASTM D 635


Impact Resistance

MIL D-3134F

16 ft/lb concrete fractures


MIL D-3134F

No indentation

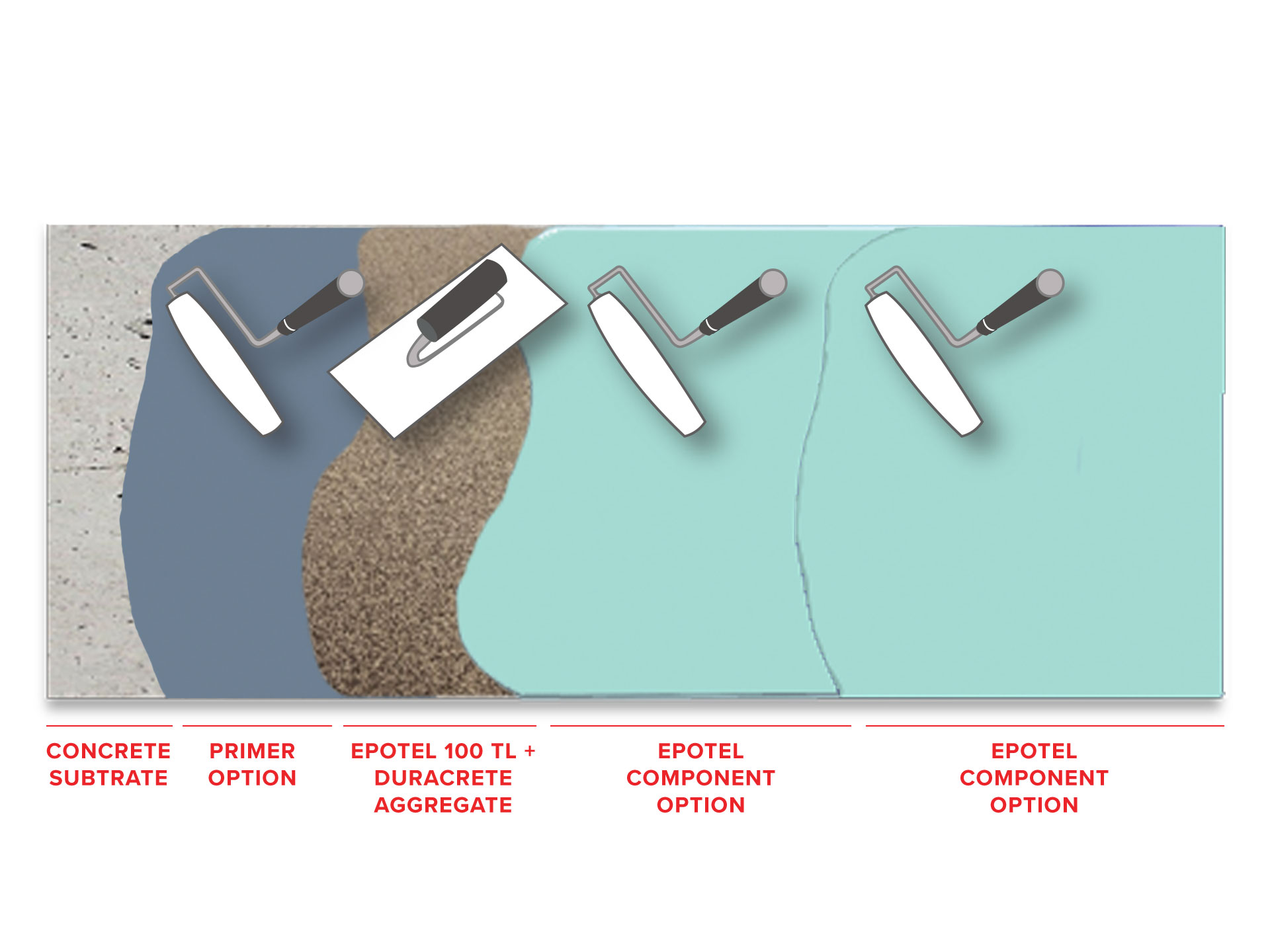

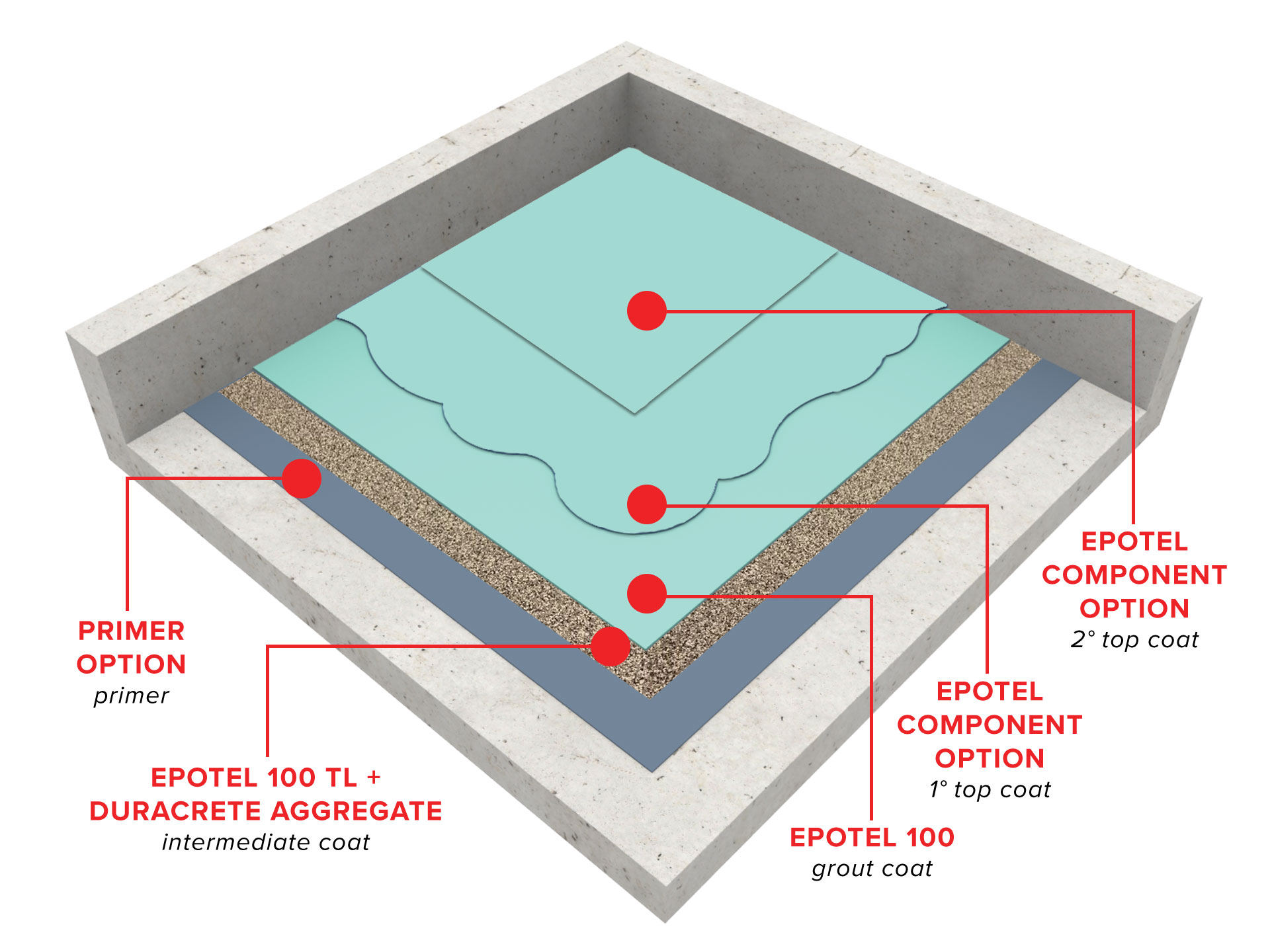

System Layer Optional Products Per Layer Notes
Intermediate Coat
+ Duracrete Trowel Aggregate
Grout Coat
Top Coat
Polyurethane Top Coat
