Lite Coat - Sports Court
High Impact Wall Finishing System Specially designed for Court Sports such as Squash and Raquet Ball
Description

Lite Coat Sports Court is a non-combustible direct applied wall coating system with extra high impact resistance to resist the continuous hard impact of balls typical of Squash and Raquet Ball. The system consists of a mulitude of coats (as may be required to level out the substrate and render the final surface true and plumb for reliable ball bounce. Depending on project conditions, the system may include metal lath, fiber glass mesh as well as fiberglass fiber shorts. The finish consists of a blend of white cements fine hard fillers & polymers to render a fine high impact finish surface.

Advantages
  • Reliable and dependable high impact performance
  • Non-combustible
  • Excellent for both new and retrofit work
Uses

Lite Coat Sport Court is a specially designed as a reliable and durable high impact finish for masonry and concrete substrates. (For other substrates consult Durabond for recommendations).

Performance Properties
Building Code Conformance

Classification

Category 2

Non-Combustible Stucco cladding System

Part 3

  • Article 3.1.5.2
  • Article 3.2.3.7 & Table 3.2.3.7
  • Allowable Minor Combustible Components
  • 0-10% Unprotected Openings

Part 5

Section 5.6.1

Protection from Precipitation

Part 9

n/a

n/a

SUBSTRATE:

Concrete / Masonry

New or existing concre / masonry

must be clean & sound (refer to system specifications for further details

WATER RESISTIVE BARRIER:

Not applicable

REINFORCEMENT:

Galvanized metal lath

ASTM 525

Min. 1.36kg/m²

(Additional reinforcement can be achieved by adding synthetic fibers to the scratch coat)

BASE COAT:
  • Durex Uniplast / Acrylic Resin Bond
  • Durex Dryplast
  • CAN/ULC S114
  • CAN/ULC S114
  • Rated noncombustible
  • Rated noncombustible
FINISHES:

Durex Architectural  Coatings

Durex Uniplast White / Acrylic Resin Bond



(refer to system specifications for application specific details)

PERFORMANCE:

Shear Bond Adhesion

ASTM C882

11.20 MPa (1625 psi)

Water absorption

ASTM D570

1.9%   (Uniplast)

Tensile Strength

ASTM C190

6.00 MPa (870 psi)

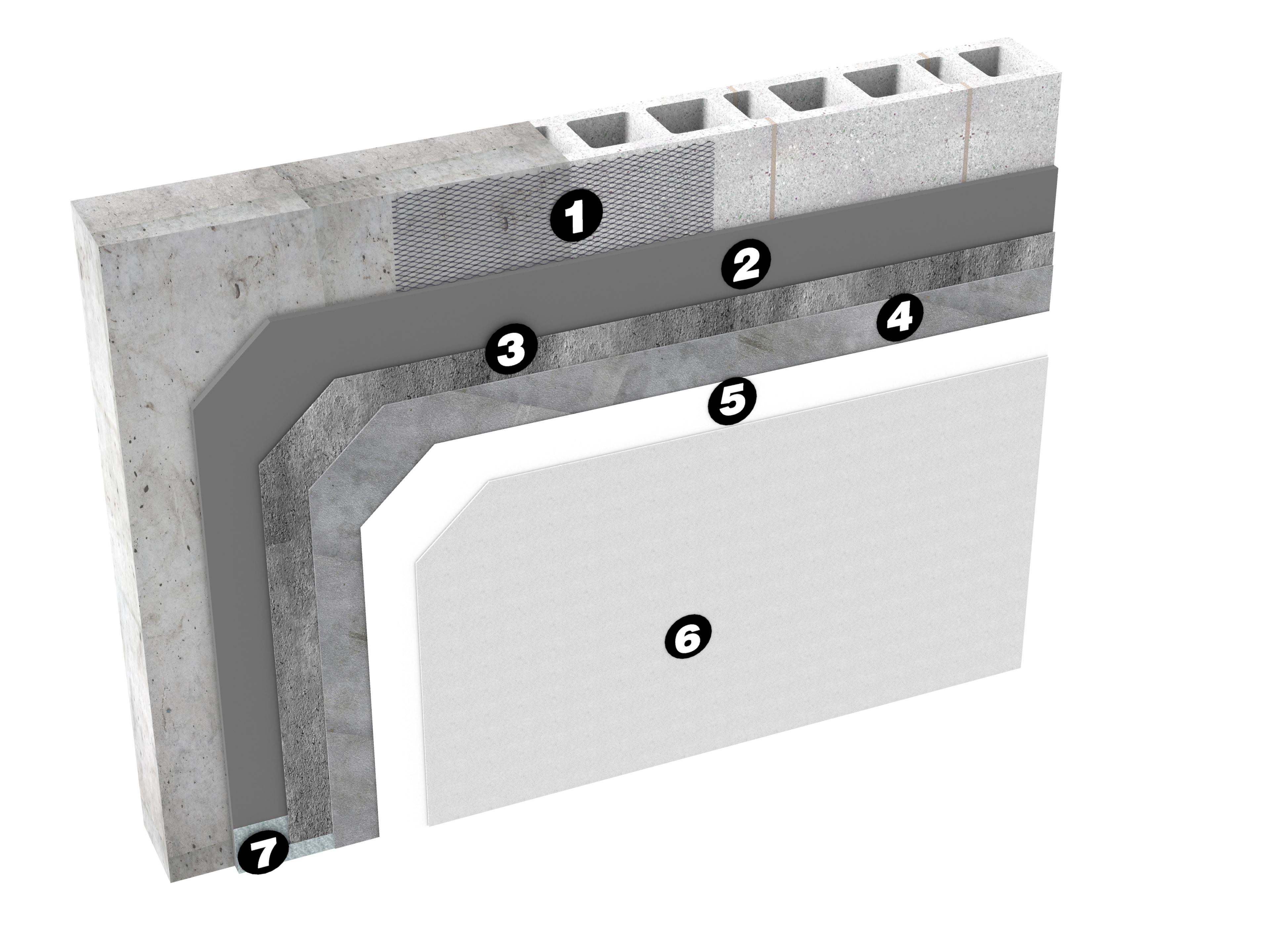

System Layer Optional Products Per Layer Notes
2 Layers Base Coat
Finish Coat
Top Coat
Galvanized Trim
