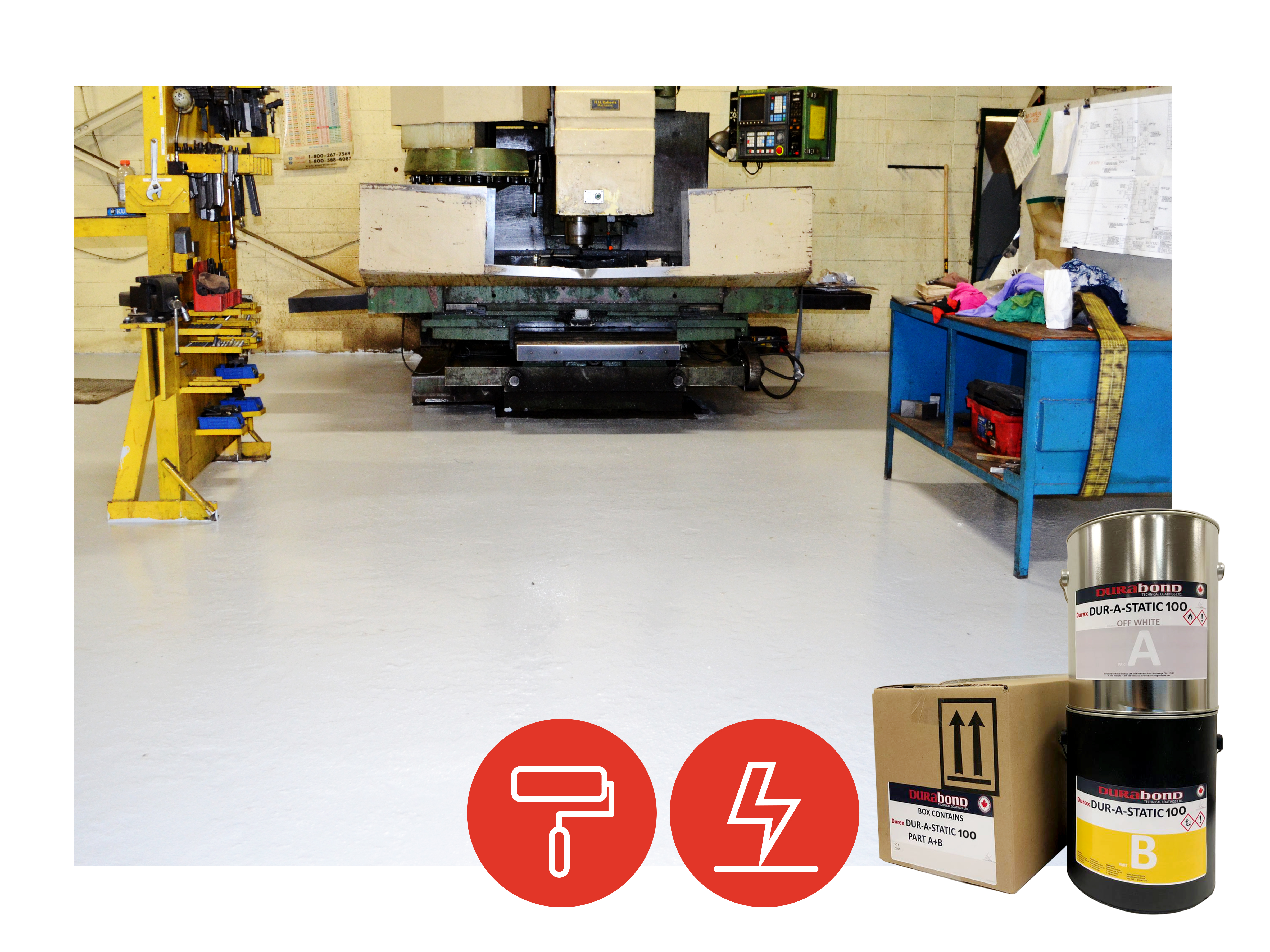

Dur-A-Static ESD 100
Intermediate Conductive Coating for Dur-A-Static ESD System
Coverage

380/ft² (35.30/m²) per Gallon @ 4.00 mils (0.1016 mm)

NMS
09 67 13
Description

Dur-A-Static ESD 100 is a high-performance epoxy-based electrostatic discharge (ESD) intermediate conductive coating for the Dur-A-Static ESD flooring system. Dur-A-Static ESD 100 is designed for use as a static dissipative intermediate coating that, as a system, provides electric conductive resistance to protect sensitive electronic equipment and machinery. The system performs to a range of 2.5 x 104 to 1.0 x 106 ohms. The system consists of a priming/leveling layer which is then combined with conductive grounded copper wire, Dur-A-Static ESD 100 intermediate conductive coat and Dur-A-Static 200 Topcoat.

Advantages
  • Protects sensitive electronic parts from the effects of static charges by dissipating them away
  • Prevents explosions due to sparks of accumulated static charges by effectively conducting it away
  • Avoid errors in readings recorded by sensitive electronic instruments monitoring vital parameters
  • Enables easy maintenance of clean room environment through its seamless, pore-free smooth surface
  • Improves the working environment by its pleasant aesthetics
  • Conforms to ANSI S20.20, < 3.5 x 107 ohms when tested in accordance with ANSI STM 97.1
  • Available in conductive range (2.5 X 104 to 1.0 X 106) ohms per ANSI/ESD S7.1/ASTM F-150
  • Low BVG, Body Voltage Generation
  • Maintain electrical resistance throughout coating thickness
Uses

Dur-A-Static ESD 100 is the Intermediate Conductive Layer for Dur-A-Static ESD 100 Electrostatic Discharge (ESD) flooring system to provide electrostatic control properties to concrete and other construction substrates. The system is recommended for floors in environments where static electricity and stray currents produced by friction could pose risks of explosions or interference with the working of precision electronic instruments. Dur-A-Static ESD 100 is ideal for data processing centers, computer and IT-related rooms and processing facilities, dry powder filling and handling facilities, solvent handling facilities, flammable gas handling locations, aircraft and aerospace facilities and hangars. It is also used for Pharmaceutical plants, hospitals and health care facilities / laboratories, electronic-based manufacturing facilities and production areas with electrically sensitive equipment, computer, conductor and circuit board production areas and explosion hazard facilities.

Physical Properties

Colour

Black

Resin Type

Water-based Epoxy

Mix Ratio
  • Part B (Hardener): Part A (Resin)
  • 3:1 by volume
Coverage

380-400 ft²/gal @ 4-5 mils WFT

Cure Time @ 23°C

To recoat: 8-24 hours

Pot Life @ 23°C

2 hours

Recommended Film Thickness

4-5 mils WFT



Performance Properties
Method Results
Percent Solids

ASTM D7232

55%

V.O.C.

ASTM D3960

0 g/L

Specific Gravity (Mixed)

ASTM D333

1.13 ± 0.05 g/L

Viscosity (Brookfield, 23°C)

ASTM D2196

1000-1500 cps

Abrasion Resistance

ASTM 5178-91 CS-17 wheel

Tensile Strength

ASTM D638

Compressive Strength

ASTM C579

Adhesion to Concrete

ASTM D4541

> 350 Psi Concrete fails
