Dur-A-Static ESD 250N
High Chemical Resistant Novolac Epoxy-Based Topcoat for Dur-A-Static ESD System
Coverage

88-130 ft2/gal @ 12-18 mils DFT

NMS
09 67 13
Description

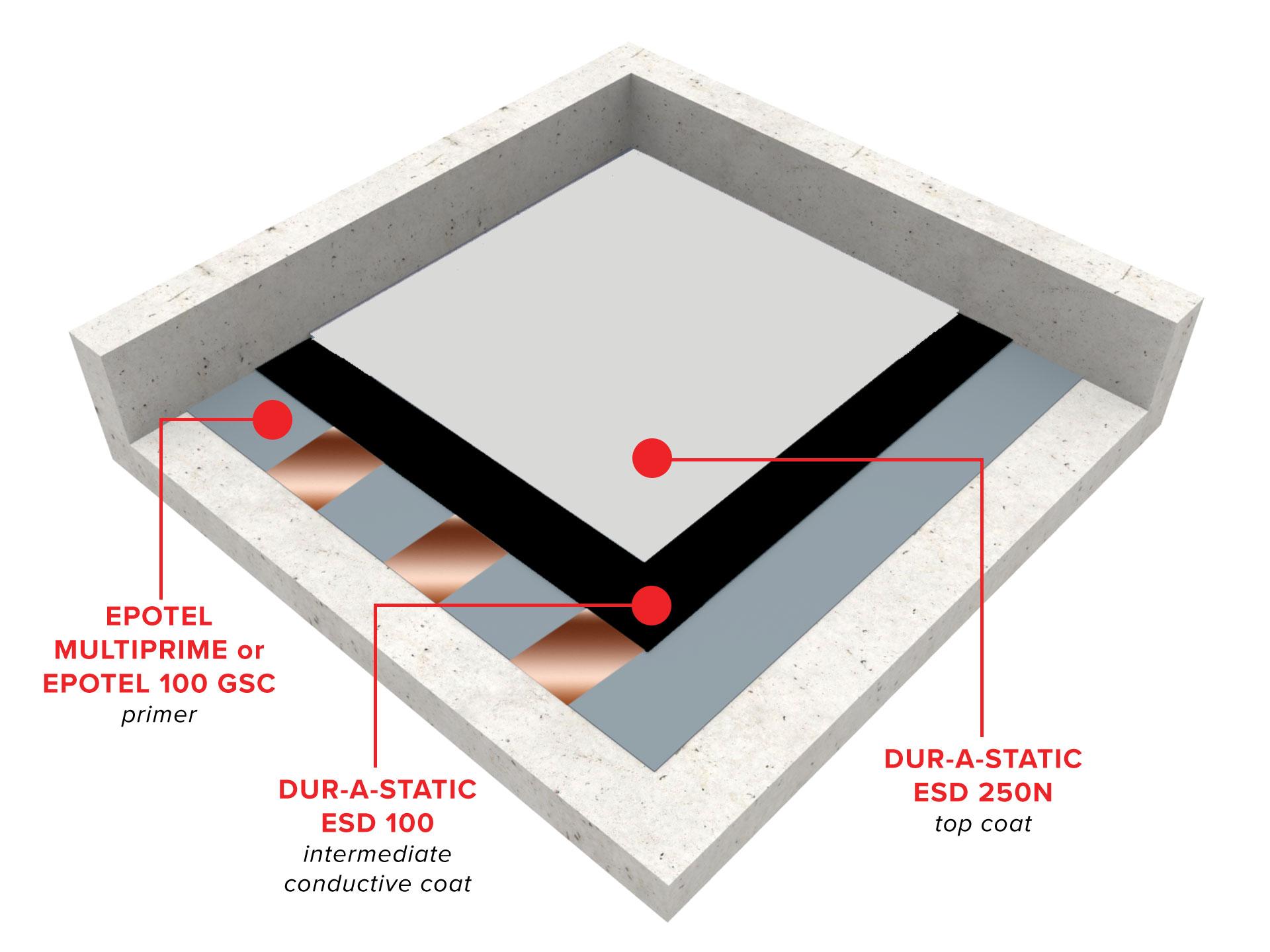

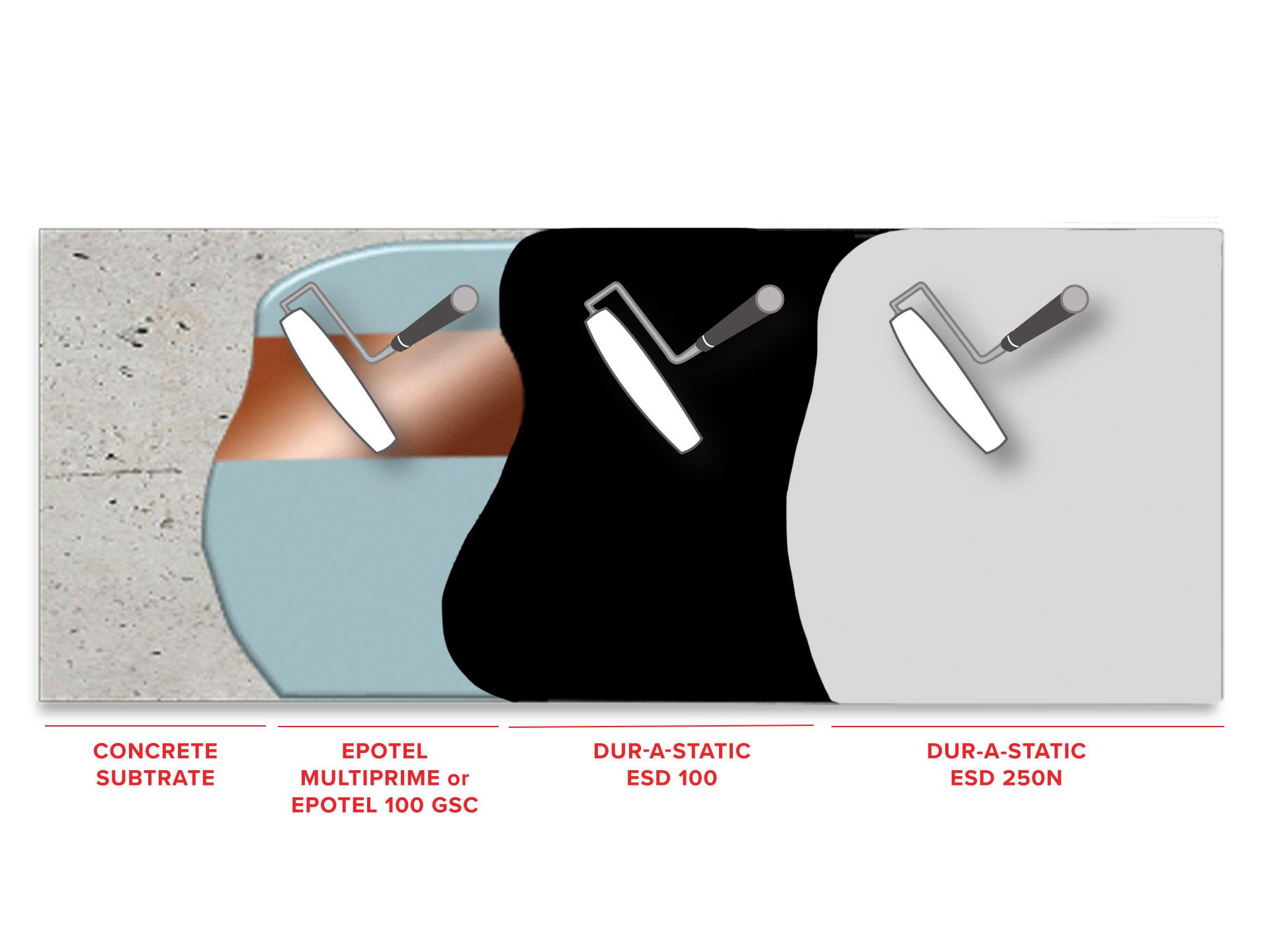

Durex Dur-A-Static ESD 250N is a highly chemical resistant, Novolac epoxy-based ESD coating designed as the top coat for Durex Dur-A-Static electrostatic discharge (ESD) flooring system. Durex Dur-A-Static ESD 250N is designed for use as a highly chemical resistant, wear-resistant top coat in a static dissipative system that provides electric conductive resistance to protect sensitive electronic equipment and machinery. The system performs to a range of 2.5 x 104 to 1.0 x 106 ohms. The system consists of a priming/leveling layer which is then combined with conductive grounded copper wire, Durex Dur-A-Static ESD 100 intermediate conductive coat and Durex Dur-A-Static 250N Top Coat.

Advantages
  • Protects sensitive electronic parts from the effects of static charges by dissipating them away
  • Prevents explosions due to sparks of accumulated static charges by effectively conducting it away
  • Avoid errors in readings recorded by sensitive electronic instruments monitoring vital parameters
  • Enables easy maintenance of clean room environment through its seamless, pore-free smooth surface
  • Improves the working environment by its pleasant aesthetics
  • Conforms to ANSI S20.20, < 3.5 x 107 ohms when tested in accordance with ANSI STM 97.1
  • Available in conductive range (2.5 X 104 to 1.0 X 106) ohms per ANSI/ESD S7.1/ASTM F-150
  • Low BVG, Body Voltage Generation
  • Maintain electrical resistance throughout coating thickness
Uses

Durex Dur-A-Static ESD 250N is the chemical-resistant top coat layer for Durex Dur-A-Static ESD 250N Electrostatic Discharge (ESD) flooring system to provide electrostatic control properties to concrete and other construction substrates. The system is recommended for floors in environments where static electricity and stray currents produced by friction could pose risks of explosions or interference with the working of precision electronic instruments.

Physical Properties

Colour

Please see Durex® Colour Selection Guide for available colour options

Resin Type

Cyclo-aliphatic Epoxy

Mix Ratio
  • Part A (Resin): Part B (Hardener)
  • 2:1 by volume
Coverage

88-130 ft2/gal @ 12-18 mils DFT

Cure Time @ 23°C
  • To touch: 8-12 hours
  • Light traffic: 48 hours
  • Fully cured: 7 days
Pot Life @ 23°C

20 minutes

Recommended Film Thickness

12-18 mils DFT



Performance Properties
Method Results
Percent Solids

ASTM D7232-06

100%

V.O.C

ASTM D3960

≤ 15 g/L

Specific Gravity (Mixed)

ASTM D333

1.25 ± 0.05 g/L

Viscosity (Brookfield, 23°C)

ASTM D2196

1000 cps

Abrasion Resistance
  • ASTM 5178-91
  • CS-17 wheel
  • 75 mg loss,
  • 1000 g load, 1000 cycles
Tensile Strength

ASTM D638-86

6,000 psi

Compressive Strength

ASTM C579

11,250N psi

Adhesion to Concrete

ASTM D4541

> 350 Psi Concrete fails

Shore D Hardness

ASTM D2240

80
