Dur-A-Static ESD Nano
Advanced Nano Technology - Self-Leveling Epoxy Electrostatic Dissipative Flooring System

1.3 Kg per m2 @ 1mm thick

09 67 13

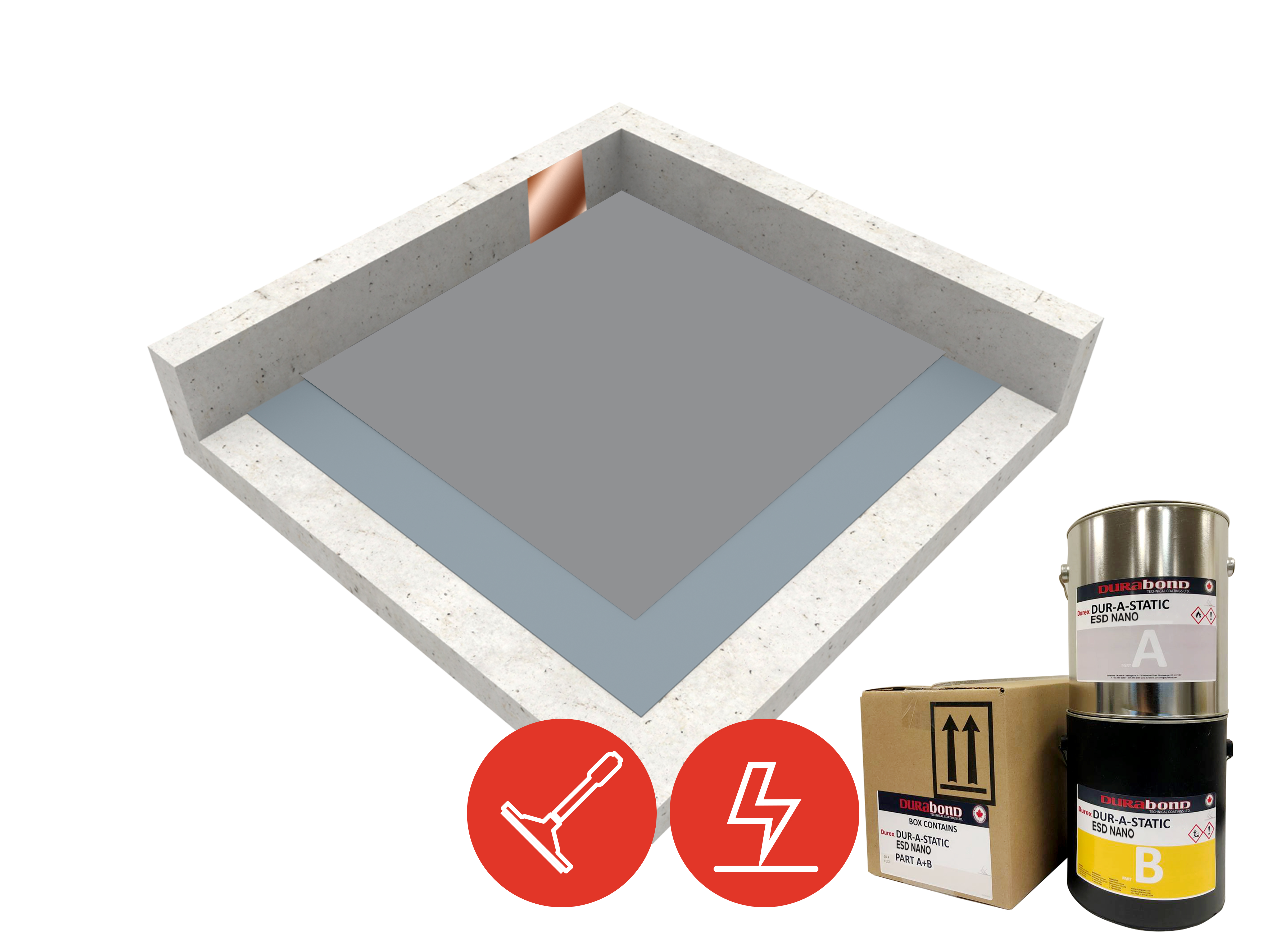

Dur-A-Static ESD Nano is a 1mm thick advanced Nano technology based, self-leveling epoxy electrostatic dissipative topcoat for  Dur-A-Static electrostatic discharge (ESD) flooring systems. Dur-A-Static ESD Nano is designed for use as a high build, durable, wear resistant topcoat in a static discharge system that provides electrical resistance to protect sensitive electronic equipment and machinery.  The system performs to the required electrical resistance as per ASTM F 150, which is sustained throughout the 1mm Dur-A-Static ESD Nano coating.  The system consists Priming/leveling layer which is then combined with conductive grounding points and Dur-A-Static ESD Nano top coat.

  • Abrasion Resistant, Self-Leveling, High-Build 1mm Coating
  • Innovative ESD Nano Technology – Consistent Ohm readings
  • Protects sensitive electronic parts from the effects of static charges by dissipating them away.
  • Prevents explosions due to sparks of accumulated static charges by effectively conducting it away.
  • Avoid errors in readings recorded by sensitive electronic instruments monitoring vital parameters.
  • Enables easy maintenance of clean room environment through its seamless, pore free smooth surface.
  • Improves the working environment by its pleasant aesthetics.
  • Low BVG Body Voltage Generation
  • Maintain electrical resistance throughout coating thickness
  • Dissipative ESD Performance - Conforms to (1.0 x 106 to 1.0 x 109) ohms per ANSI/ESD S7.1/ASTM F-150

Dur-A-Static ESD Nano is the 1mm self-leveling top coat for Dur-A-Static Electrostatic Discharge (ESD) Nano flooring system to provide electrostatic control properties to concrete and other construction substrates. The system is recommended for floors in environments where static electricity and stray currents produced by friction could pose risks of explosions or interference with the working of precision electronic instruments.

Physical Properties

Please see Durex® ESD Colour Selection Guide for available colour options

Resin Type

Epoxy Resin

Mix Ratio

Factory controlled Unit.


1.3 Kg per m2 @ 1mm thick

Cure Time @ 23°C
  • To touch: 10-12 hours       Drying times will vary due to temperature and humidity.
  • Foot traffic: 24-48 hours
  • Total cure: 7 days
Pot Life @ 23°C

30 minutes

Recommended Film Thickness

40 mils (1mm)

Performance Properties
Method Results
Percent Solids

ASTM D 7232-06



ASTM D 3960

0 g/L

Specific Gravity (Mixed)

ASTM D 333

1.3± 0.05 g/L

Viscosity (Brookfield, 23°C)

ASTM D 2196

3000 cps

Abrasion Resistance
  • ASTM 5178-91
  • CS-17 wheel
  • 25 mg loss,
  • 1000 g load, 1000 cycles
Tensile Strength

ASTM D 638-86

2,100 psi


ASTM D638-86


Static Control


1.0x106 to 1.0 x109 ohms per ANSI/ESD S7.1 (ASTM F-150) - Dissipative

Shore D Hardness

ASTM D 2240

80 (28 days)
