Epotel GSA
Industrial/Commercial Concrete Epoxy Floor Coating
Coverage

4 m²/L (160 ft²/gal) @ 10 mils DFT

NMS
09 67 00
Description

Epotel GSA Industrial/Commercial Concrete Epoxy Floor Coating is a two-component, solvent and VOC free, 100% solids epoxy concrete floor coating. Epotel GSA is a high-quality, thin build epoxy coating with excellent hiding power.  It is specifically designed for use in warehouse and light manufacturing environments.

Advantages
  • Self-leveling and seamless
  • Self-priming
  • Slower curing, easy to use
  • Good hardness
  • Good chemical and solvent resistance
  • Excellent adhesion
  • Very low odour
  • Blushing-free properties
  • Low viscosity
  • Good resistance to yellowing
  • Formulated using high-quality resins
Uses

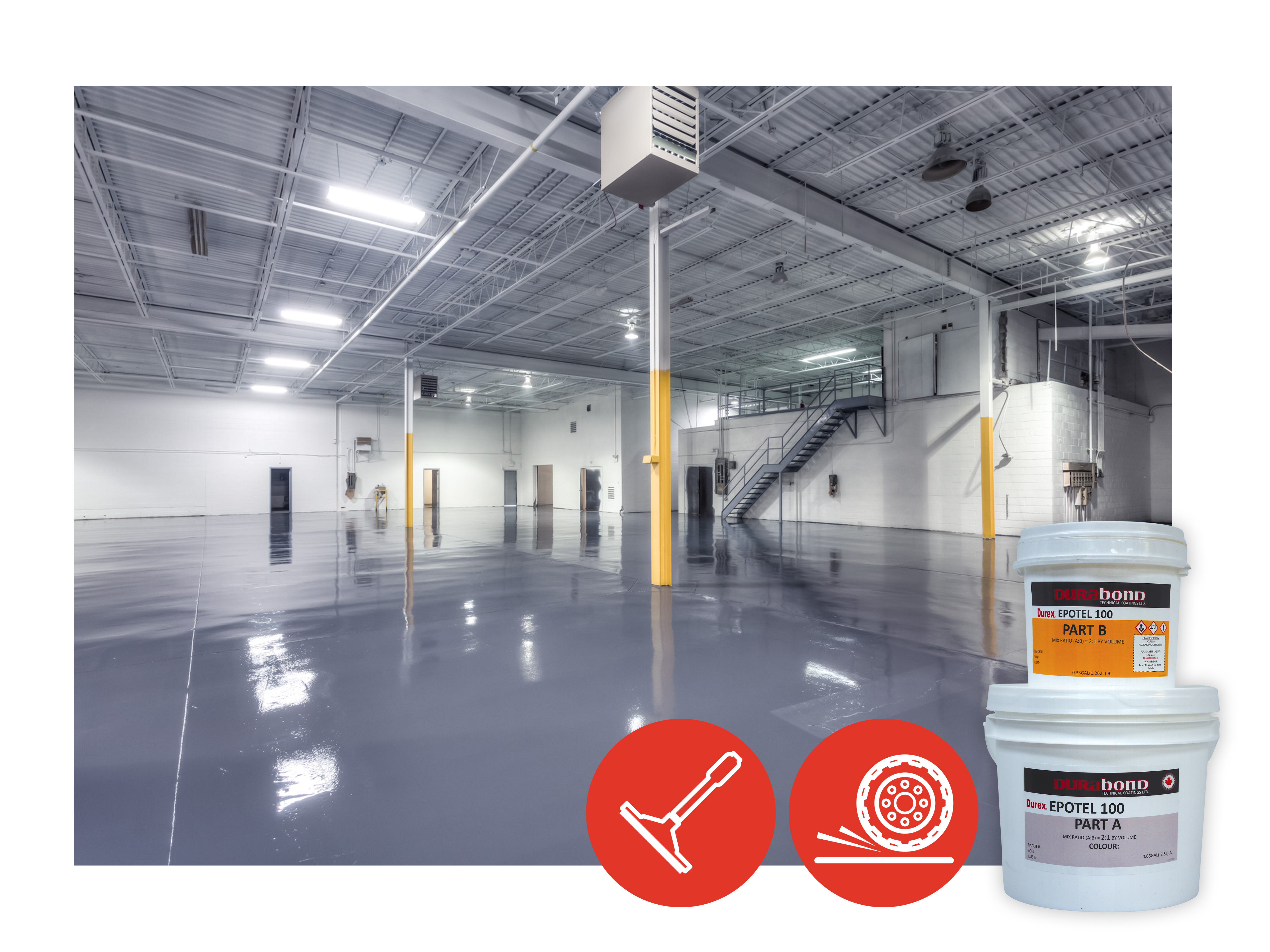

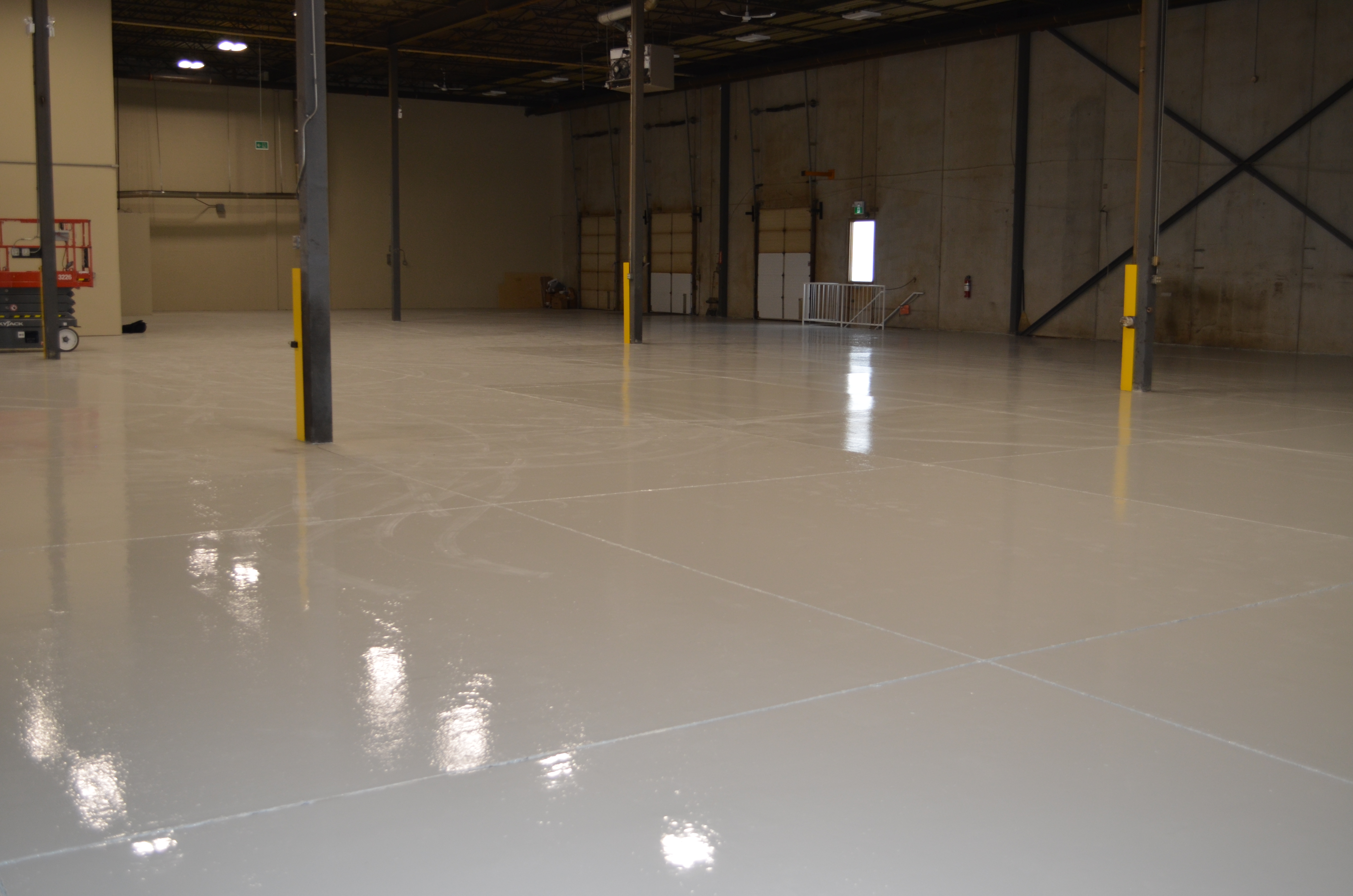

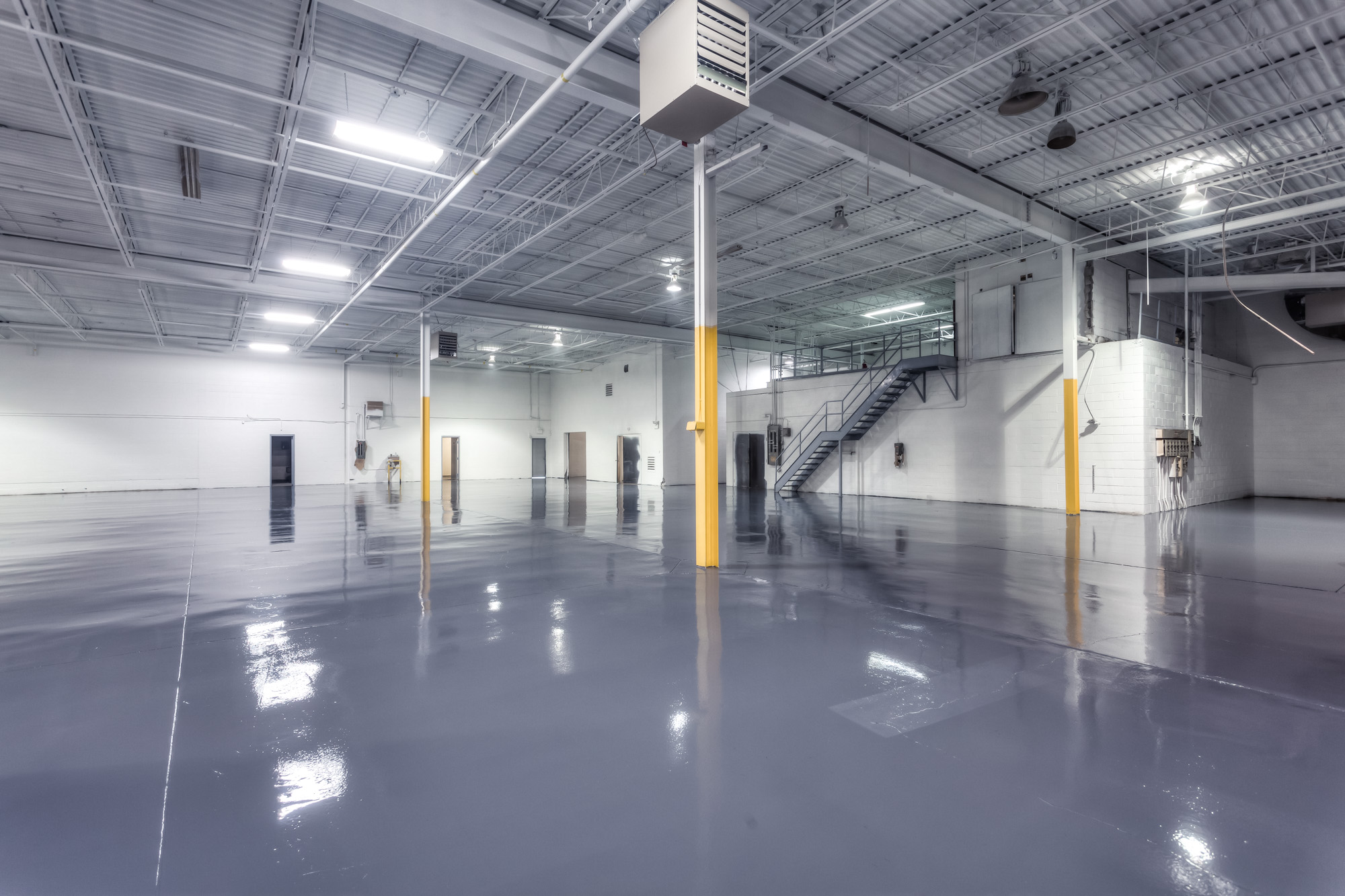

Epotel GSA Industrial/Commercial Concrete Epoxy Floor Coating is an ideal, versatile epoxy floor coating for use in industrial and warehouse facilities.

Physical Properties

Colour

Pigmented

Coverage

4 m²/L (160 ft²/gal) @ 10 mils DFT

Cure Time @ 23°C (75°F), 55% RH
  • To touch: 10 hours
  • Light traffic: 12 hours
  • Fully cured: 72 hours
Recommended Film Thicknes

16-18 mils DFT

Mix Ratio Part A (Resin): Part B (Catalyst)

2:1 by volume

Pot Life @ 23°C (75°F)

30 - 35 minutes

Reducer/Clean-up Lacquer thinner or xylene

Lacquer thinner or xylene



Performance Properties
Method Results
Percent Solids

ASTM D7232

100% (volume - clear)

Viscosity (Brookfield) 23°C (75°F), A+B

ASTM D2196

  • 750 cps Clear
  • 850 cps Pigmented
V.O.C.

ASTM D3960

Zero

Specific Gravity (Part A + B)

ASTM D333

  • 1.07 ± 0.01 g/L
  • 8.90 ± 0.1 lb/gal
Compressive Strength

ASTM 695

8,500 psi (58.6) MPa)

Tensile Strength

ASTM 695

1,850 psi (12.8 MPa)

Tensile Modulus

ASTM D638

480 psi (12.8 MPa)

Elongation

ASTM D638-86

8.0%

Flexural Modulus

ASTM D790

490 psi (3.4 MPa)

Abrasion Resistance

ASTM D4060

0.030g loss

Mar Resistance

ASTM D5178

1.0 kg

Shore D Hardness

75
